Article image 1SAX111001R1104

ABB 1SAX111001R1104

E16DU-6.3

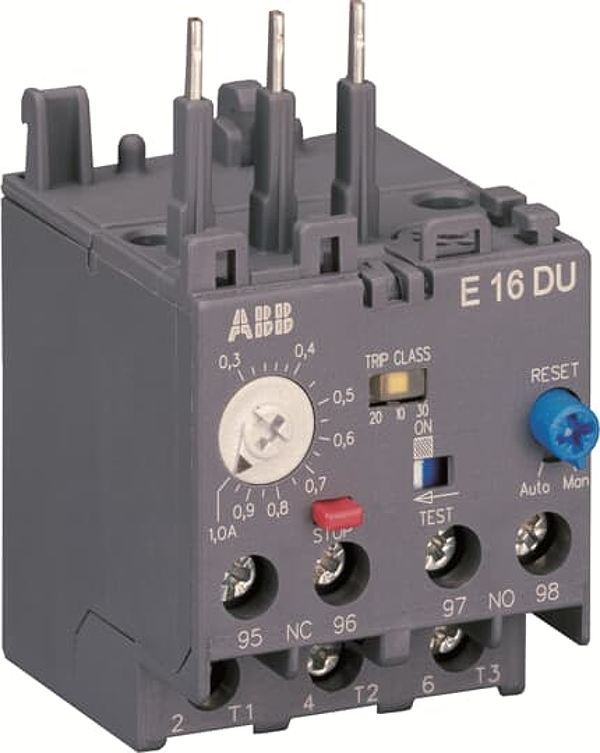

E16DU-6.3 Electronic Overload Relay

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The E16DU-6.3 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory.

Logistic parameters

ECCN:
Country of Origin: CN
EAN:
Weight: 0.15 kg
Length: 0.057 m
Width: 0.0444 m
Height: 0.0746 m
