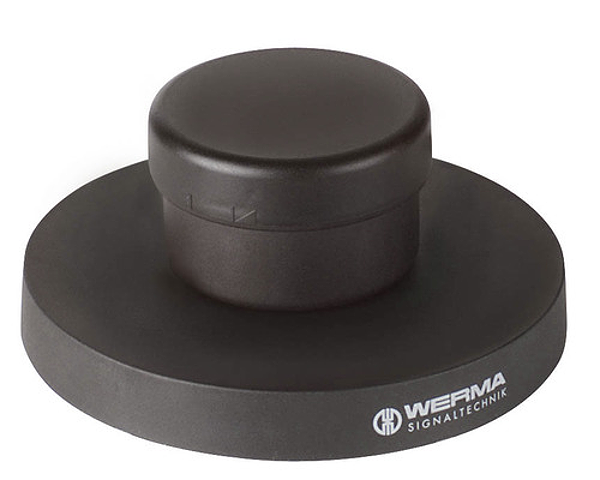

Werma 86064008
Connection Set BWM 115-230VAC BK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Ideal supplement to WIN (Wireless Information Network) to expand the, transmission range. Signal Tower reflection to any location with the aid of KombiSIGN, reflect. Simple installation as no additional cable is required. Universal power supply and interchangeable adaptors enable worldwide, use
Technical parameters
| Height: | 55 mm |
| Diameter: | 136 mm |
| Materials: | PA-GF PC/ABS |
| Housing colour: | Black |
| Protection category: | IP20 |
| Connection: | Special version |
| Tension relief: | Pull-out protection |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | 0°C |
| Working temperature maximum: | +40°C |
| Weight with packaging: | 398 g |
| Product weight: | 341 g |
| Operating voltage: | 115-230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz at 230V 60Hz at 115V |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 1000 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 2 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
