Product
Werma
86000007
Request a Quote
Image copyright: Werma

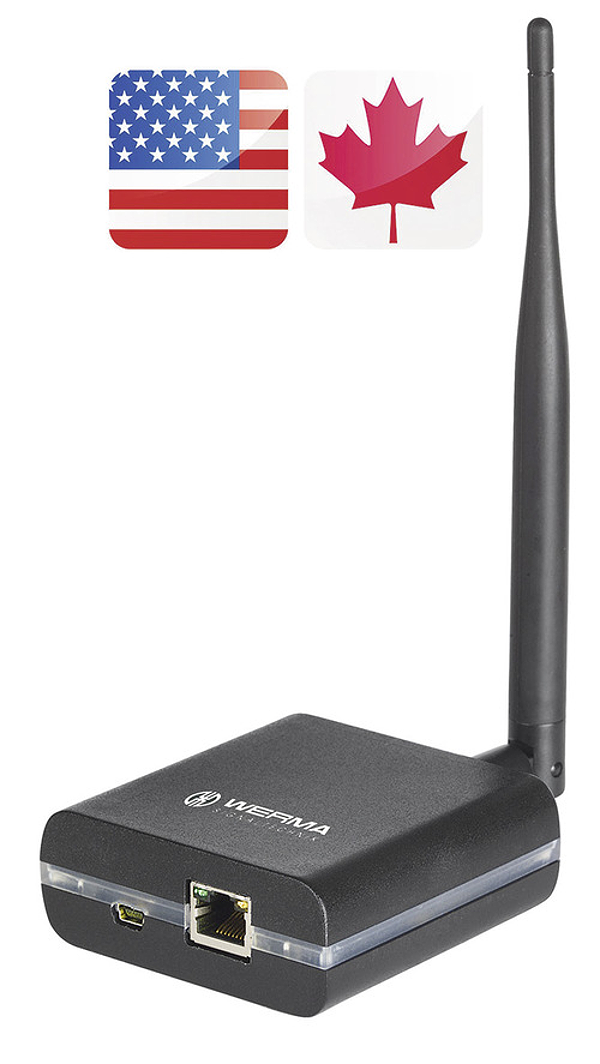

Werma 86000007
WIN ethernet receiver 115-230VAC BK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
B>Only suitable for North America</b>. Receiver can be located close to the operation without being connected, to a PC
Technical parameters
| Length: | 80 mm |
| Width: | 76 mm |
| Height: | 30 mm |
| Materials: | ABS |
| Housing colour: | Black |
| Protection category: | IP20 |
| Connection: | USB |
| Working temperature minimum: | 0°C |
| Working temperature maximum: | +40°C |
| Weight with packaging: | 423 g |
| Product weight: | 378 g |
| Operating voltage: | 115-230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz at 230V 60Hz at 115V |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 160 mA |
| Rated inrush current: | 800 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 2 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
