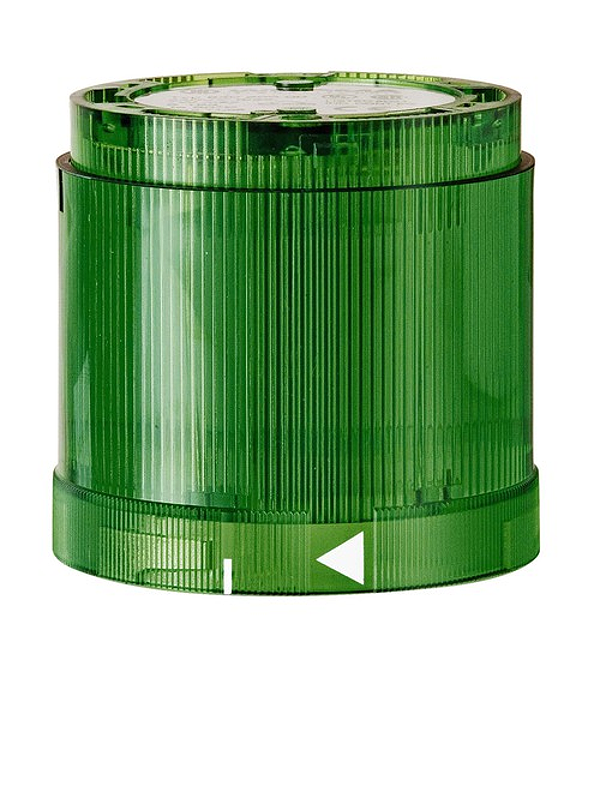

Werma 84220067
Flashing light element 115VAC GN
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The intense light pulse of the Xenon flash guarntees a strong signal, effect. Optimum attention is attracted by the concentration of the signal on, the central area of the signal element
Technical parameters
| Height: | 66 mm |
| Diameter: | 70 mm |
| Materials: | PC |
| Dome colour: | Green |
| Protection category: | IP54 |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 109 g |
| Product weight: | 94 g |
| Operating voltage: | 115V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 60Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 115 VAC |
| Rated operational current: | 22 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | Xenon |
| Light colour: | Green |
| Optical signal image: | Flash |
| Flash frequency: | 1 Hz |
| Flash output: | 2 J |
| Service life optical: | 4 million flashes minimum |
