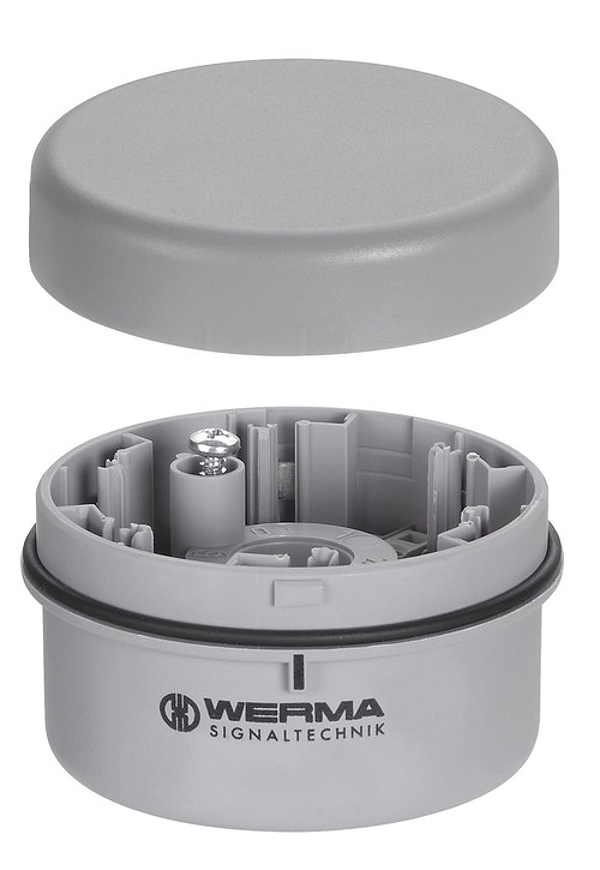

Werma 64090000
Terminal element BWM 12-230VAC/DC GY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Terminal element for base mounting. Wall mounting with bracket (accessory) is possible. Suitable for modular signal tower KombiSIGN 72 in DesignLOOK. Order accessories for wall mounting separately please
Technical parameters
| Height: | 36 mm |
| Diameter: | 70 mm |
| Materials: | PA-GF PC |
| Housing colour: | Grey |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 11 mm |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 102 g |
| Product weight: | 90 g |
| Operating voltage: | 12-230V |
| Operating voltage type: | AC/DC |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
