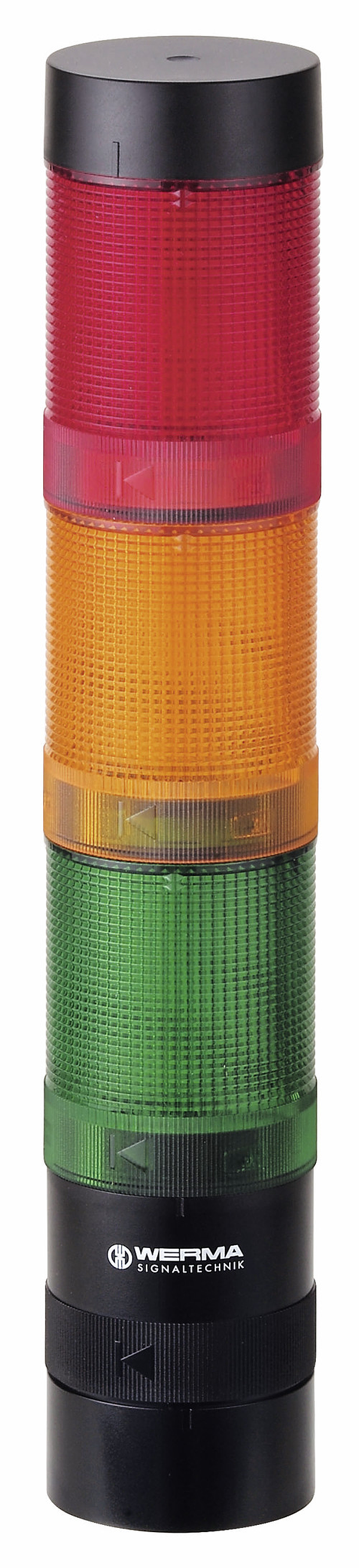

Werma 63930001
KS40 Classic BWM 24VAC/DC GN/YE/RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High runner product under one part number. Reduction of variants. At any time possible to retrofit an element (e.g. audible element)
Technical parameters
| Height: | 215 mm |
| Diameter: | 40 mm |
| Materials: | PC |
| Dome colour: | Green Red Yellow |
| Housing colour: | Black |
| Protection category: | IP66 IP69K |
| Connection: | Push-in terminal |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 9 mm |
| Tension relief: | Not present |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +60°C |
| Weight with packaging: | 210 g |
| Product weight: | 129 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 40 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 3 |
| Pollution degree: | 3 |
| Request to external PSU: | SELV/PELV |
| Light source: | LED |
| Light colour: | Green Red Yellow |
| Optical signal image: | Blink Permanent |
| Blink frequency (Hz): | 1 Hz |
| Service life optical: | 50,000 h maximum |
