Product
Werma
43220075
Request a Quote
Image copyright: Werma

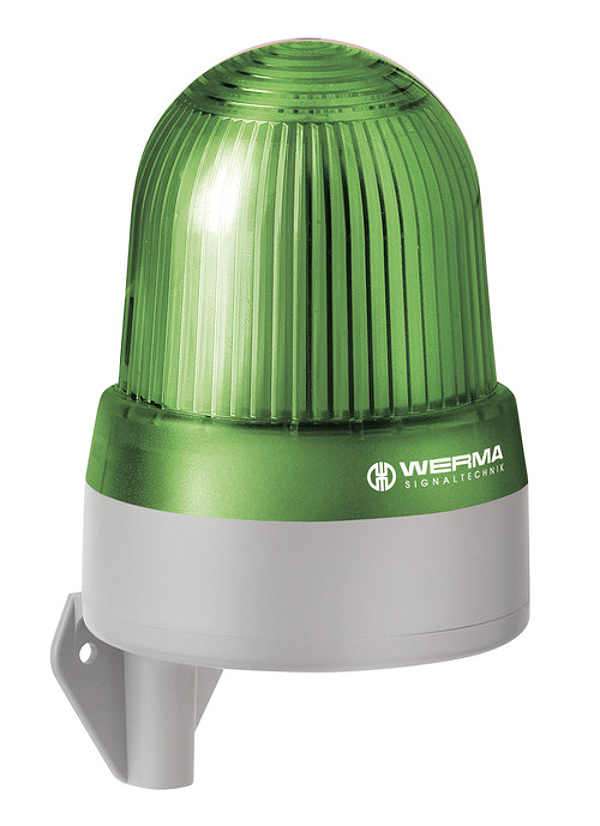

Werma 43220075
LED Siren WM 32 tne 24VAC/DC GN
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
32 tones can be set to meet the requirements of the applicatioin, one, tone can be triggered externally. Adjustable sound output up to 112 dB. Optical and audible warning can be sparately triggered for two stage, signalling. Optional integrated bracket for simple wall mounting without additional, accessories
Technical parameters
| Length: | 144 mm |
| Width: | 134 mm |
| Height: | 235 mm |
| Diameter: | 134 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Green |
| Housing colour: | Grey |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Membrane grommet |
| Cable entry minimum: | d = 1 mm |
| Cable entry maximum: | d = 13 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 645 g |
| Product weight: | 500 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 540 mA |
| Rated inrush current: | 400 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | Green |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
| Volume/dB(max) at 1m distance: | 108,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 32 tone |
| Acoustic service life: | 5,000 h minimum |
