Werma
42532067
Request a Quote
Image copyright: Werma

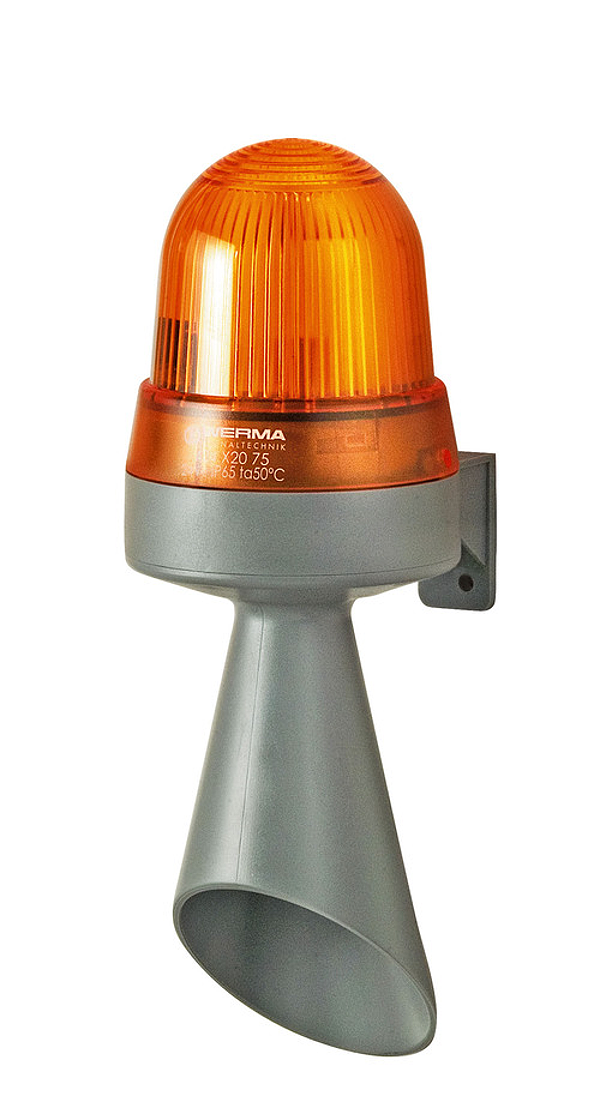

Werma 42532067
Horn/Flash Comb. WM Contin. tone 115VAC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Maintenance-free electronic signal horn with life duration of up to. 5,000 hrs. Light and sound can be separately triggered for two-stage signalling. Adjustable sound output (24 V version)
Technical parameters
| Height: | 235 mm |
| Diameter: | 83 mm |
| Materials: | PC |
| Dome colour: | Yellow |
| Housing colour: | Grey |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Membrane grommet |
| Cable entry minimum: | d = 1 mm |
| Cable entry maximum: | d = 9 mm |
| Tension relief: | Pull-out protection |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 234 g |
| Product weight: | 180 g |
| Operating voltage: | 115V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 60Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 115 VAC |
| Rated operational current: | 100 mA |
| Rated inrush current: | 1.000 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | Xenon |
| Light colour: | Yellow |
| Optical signal image: | Flash |
| Flash frequency: | 1 Hz |
| Flash output: | 1 J |
| Service life optical: | 4 million flashes minimum |
| Volume/dB(max) at 1m distance: | 98,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 110 Hz |
| Acoustic service life: | 5,000 h minimum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
