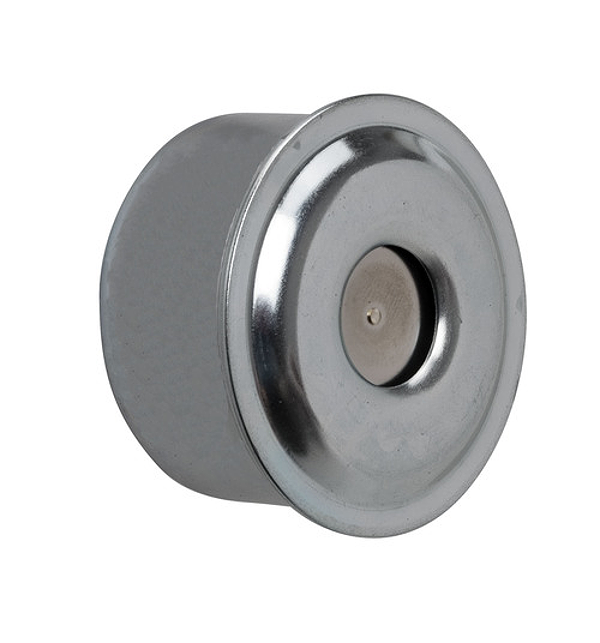

Werma 38201368
Buzzer EM Contin. tone 230VAC SR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
All-purpose installation buzzer. Minimal current consumption reduces operating costs
Technical parameters
| Height: | 37 mm |
| Diameter: | 55 mm |
| Materials: | Steel |
| Housing colour: | Silver |
| Protection category: | IP20 |
| Connection: | Stranded wires (tinned) |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +60°C |
| Weight with packaging: | 100 g |
| Product weight: | 100 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 15 mA |
| Rated inrush current: | <500mA |
| Pollution degree: | 2 |
| Volume/dB(max) at 1m distance: | 90,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 100 Hz |
| Acoustic service life: | 300 h minimum |
