Werma 28041055

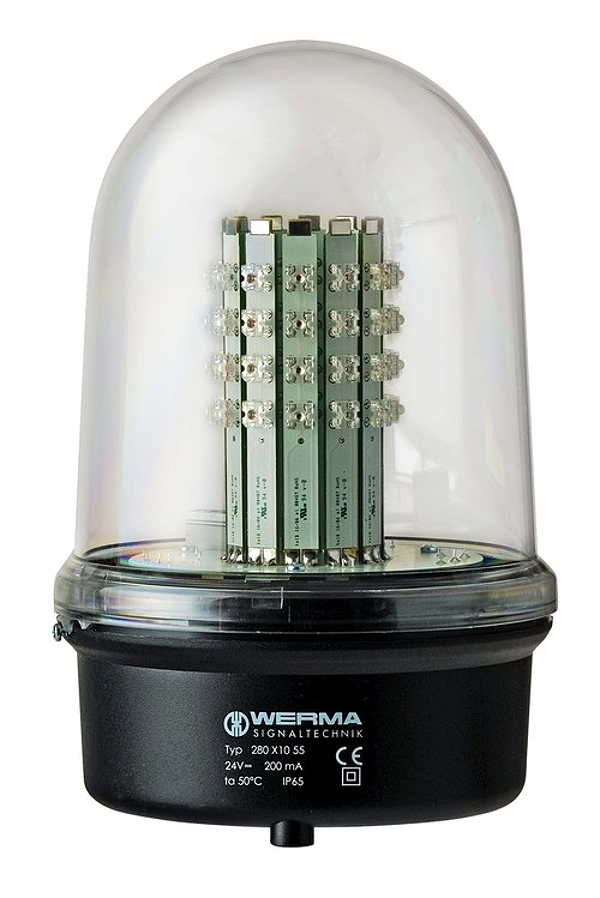

LED Obstruction light BM 12-50VDC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED obstruction light certified in accordance with German BMVBS, regulations. For use as Low-intensity Obstruction Light, Type A in accordance with. ICAO Annex 14. High impact resistance to 20 Joules. DC multi-voltage version
Technical parameters
| Height: | 218 mm |
| Diameter: | 142 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Rubber pinch |
| Cable entry minimum: | d = 5 mm |
| Cable entry maximum: | d = 7 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 629 g |
| Product weight: | 499 g |
| Operating voltage: | 12-50V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 0% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 500 mA |
| Rated inrush current: | 2.000 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
