Product
Werma
23948255
Request a Quote
Image copyright: Werma

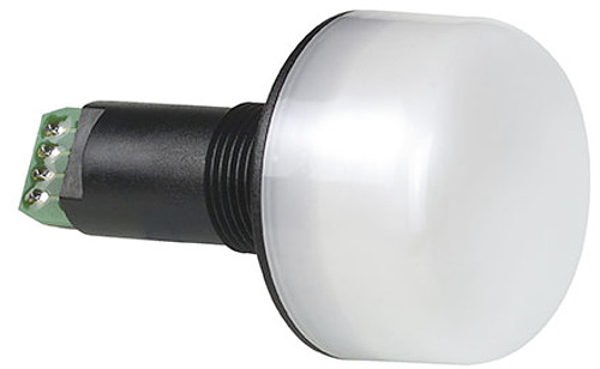

Werma 23948255
LED Beacon EM 24VDC MC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Five colours in one beacon (red, green, yellow, clear, blue). The colours can be triggerd using PLC outputs. IP 65. User-friendly wiring with Push In terminal
Technical parameters
| Height: | 78 mm |
| Diameter: | 50 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Push-in terminal |
| cross-sectional area minimum: | 0,09mm² / 28AWG |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 53 g |
| Product weight: | 37 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 75 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | LED |
| Light colour: | MC 5 colours |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
