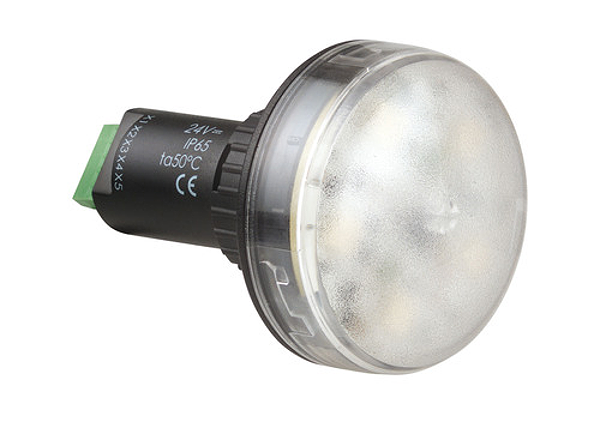

Werma 23948055
LED Beacon EM 24VDC MC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Five colours in one beacon. Multiple status warnings can be signalled by one beacon. Colours can be triggered via the terminals. Positive and negative control logic. The three basic colours (red/yellow/green) can be triggered using only, two PLC outputs
Technical parameters
| Height: | 78 mm |
| Diameter: | 50 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Clear |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area minimum: | 0,14mm² / 26AWG |
| cross-sectional area maximum: | 0,50mm² / 20AWG |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 48 g |
| Product weight: | 31 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 75 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | LED |
| Light colour: | MC 5 colours |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
