Product
Werma
23150055
Request a Quote
Image copyright: Werma

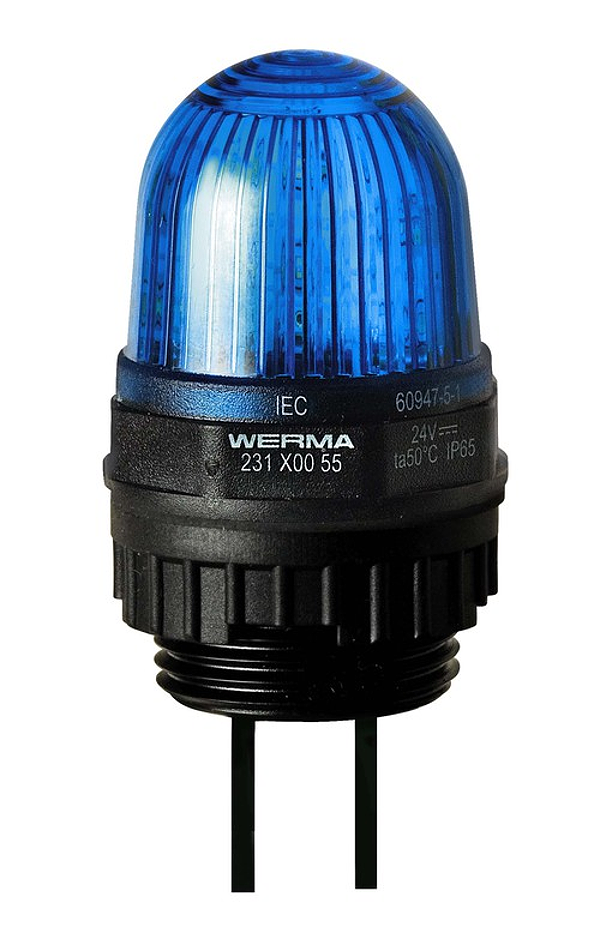

Werma 23150055
LED Perm. Beacon EM 24VDC BU
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED Permanent beacon with M 22 thread for the control panel/switchgear, programme. Excellent visibility from the side
Technical parameters
| Height: | 152 mm |
| Diameter: | 29 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Blue |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Cable |
| Cable length: | 105 mm |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 21 g |
| Product weight: | 16 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 45 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | LED |
| Light colour: | Blue |
| Optical signal image: | Permanent |
| Service life optical: | 100,000 h maximum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
