Product
Werma
20710075
Request a Quote
Image copyright: Werma

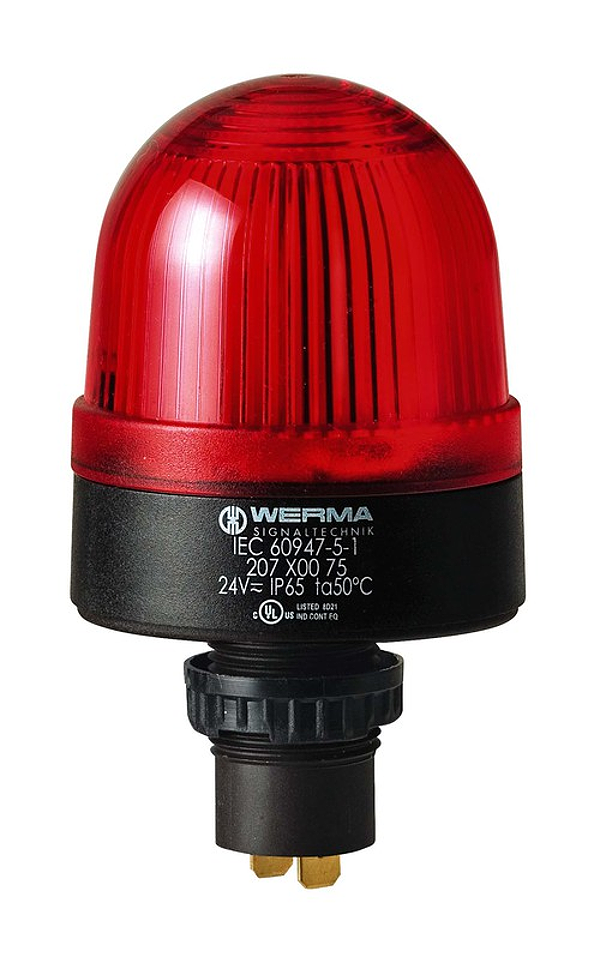

Werma 20710075
LED Perm. Beacon EM 24VAC/DC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED beacon with life duration of up to 100,000 hrs. Suitable for use in the 22 mm standard control panel/switchgear, programme
Technical parameters
| Height: | 103 mm |
| Diameter: | 58 mm |
| Materials: | PA-GF PC |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Flat plug |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 77 g |
| Product weight: | 55 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 45 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Permanent |
| Service life optical: | 100,000 h maximum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
