Product
Werma
12605215
Request a Quote
Image copyright: Werma

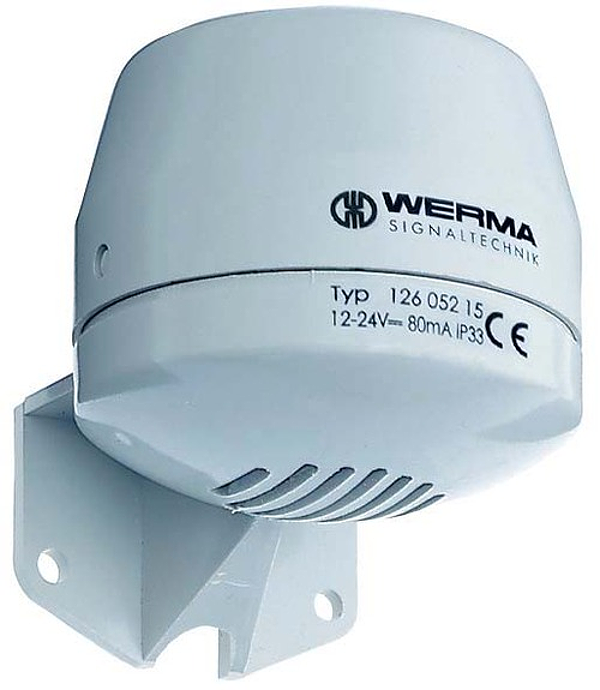

Werma 12605215
Multi-t.sounder WM 4 tne 12-24VDC GY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
4 different externally triggerable tones for application-specific, signalling. Integrated bracket for simple wall mounting without additional, accessories
Technical parameters
| Height: | 80 mm |
| Diameter: | 70 mm |
| Materials: | PC/ABS |
| Housing colour: | Grey |
| Protection category: | IP33 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 9 mm |
| Type of fixing: | Wall mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 131 g |
| Product weight: | 105 g |
| Operating voltage: | 12-24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 80 mA |
| Rated inrush current: | <500mA |
| Protection class: | Protection class 3 |
| Pollution degree: | 2 |
| Request to external PSU: | SELV/PELV |
| Volume/dB(max) at 1m distance: | 105,0 dB (A) |
| Number of tones: | 4 tone |
| Acoustic service life: | 1,000 h minimum |
