Werma
11900455
Request a Quote
Image copyright: Werma

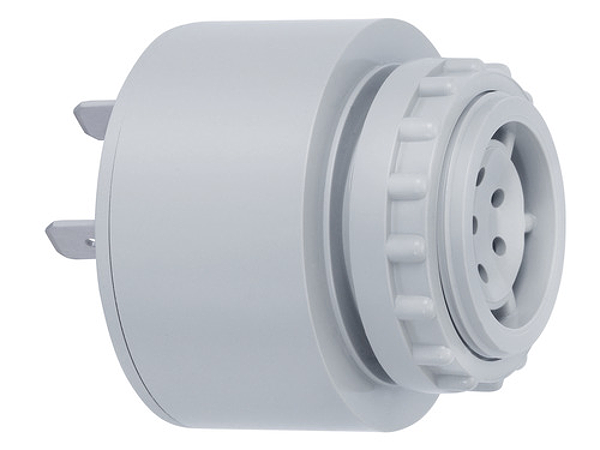

Werma 11900455
Electr. Buzzer EM 3 tne 24VDC GY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Version with three externally triggerable tones. Minimal current consumption reduces operating costs. IP 43 with cap
Technical parameters
| Height: | 49 mm |
| Diameter: | 43 mm |
| Materials: | PC/ABS |
| Housing colour: | Grey |
| Protection category: | IP30 |
| Connection: | Flat plug |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 42 g |
| Product weight: | 30 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 25 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 2 |
| Volume/dB(max) at 1m distance: | 90,0 dB (A) |
| Acoustic signal image: | Multi-tone |
| Number of tones: | 3 tone |
| Audio frequency: | 2400 Hz |
| Acoustic service life: | 5,000 h minimum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
