Product
Weidmueller
9918860000
VT COMBI PRO
Request a Quote

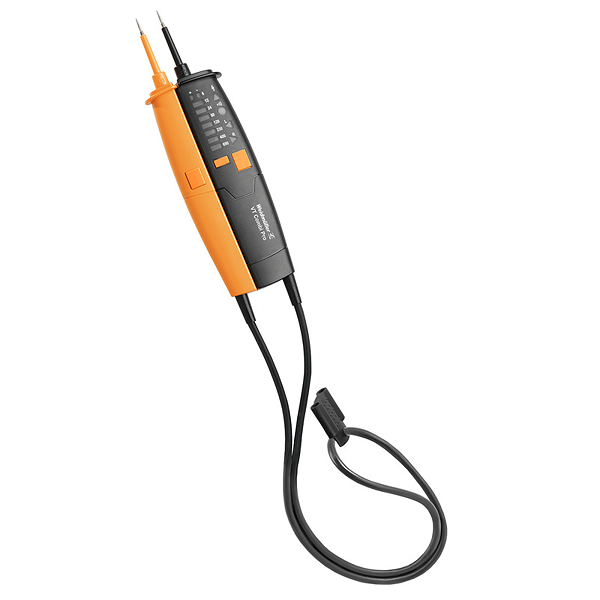

Image copyright: Weidmueller
Weidmueller 9918860000
VT COMBI PRO
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | VT COMBI PRO |
| Order No.: | 9918860000 |
| Version: | 2-pole voltage tester type 1156, Yes - visual + acoustic |
| GTIN (EAN): | 4032248405749 |
| Qty.: | 1 pc(s). |
| Width: | 264 mm |
| Width (inches): | 10.394 inch |
| Height: | 33 mm |
| Height (inches): | 1.299 inch |
| Depth: | 67 mm |
| Depth (inches): | 2.638 inch |
| Weight: | 290 g |
| Net weight: | 356 g |
| REACH SVHC: | Lead 7439-92-1 |
| AC voltage display: | 6,12, 24, 50, 120, 230, 400, 690 V |
| AC voltage measuring range: | 6-690 V |
| Battery type: | 1.5 V type AAA battery |
| Continuity test: | Yes - visual + acoustic |
| DC voltage display: | 6,12, 24, 50, 120, 230, 400, 690 V |
| DC voltage measuring range: | 690 V |
| Display: | LED |
| Frequency range, max.: | 400 Hz |
| Frequency range, min.: | 16 Hz |
| Insulation test: | 8 kV |
| Measuring range category: | CAT III – 690V/CAT IV – 600V |
| Note: | Screw-on, thicker test probes |
| Peak voltage resistance: | 8 kV |
| Protection degree: | IP65 |
| RCD circuit breaker: | The selectable load enables conscious triggering of a 30 mA RCD circuit breaker |
| Rated voltage, max.: | 690 V AC/DC |
| Rated voltage, min.: | 6 V |
| Tested and approved according to: | IEC 61243-3:2014 (DIN EN 61243-3:2015-08) |
| Working temperature, max.: | 55 °C |
| Working temperature, min.: | -15 °C |
| ETIM 6.0: | EC000494 |
| ETIM 7.0: | EC000494 |
| eClass 9.0: | 27-20-03-08 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-08 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
| Type: | VT COMBI PRO |
| Order No.: | 9918860000 |
| Version: | 2-pole voltage tester type 1156, Yes - visual + acoustic |
| GTIN (EAN): | 4032248405749 |
| Qty.: | 1 pc(s). |
| Width: | 264 mm |
| Width (inches): | 10.394 inch |
| Height: | 33 mm |
| Height (inches): | 1.299 inch |
| Depth: | 67 mm |
| Depth (inches): | 2.638 inch |
| Weight: | 290 g |
| Net weight: | 356 g |
| REACH SVHC: | Lead 7439-92-1 |
| AC voltage display: | 6,12, 24, 50, 120, 230, 400, 690 V |
| AC voltage measuring range: | 6-690 V |
| Battery type: | 1.5 V type AAA battery |
| Continuity test: | Yes - visual + acoustic |
| DC voltage display: | 6,12, 24, 50, 120, 230, 400, 690 V |
| DC voltage measuring range: | 690 V |
| Display: | LED |
| Frequency range, max.: | 400 Hz |
| Frequency range, min.: | 16 Hz |
| Insulation test: | 8 kV |
| Measuring range category: | CAT III – 690V/CAT IV – 600V |
| Note: | Screw-on, thicker test probes |
| Peak voltage resistance: | 8 kV |
| Protection degree: | IP65 |
| RCD circuit breaker: | The selectable load enables conscious triggering of a 30 mA RCD circuit breaker |
| Rated voltage, max.: | 690 V AC/DC |
| Rated voltage, min.: | 6 V |
| Tested and approved according to: | IEC 61243-3:2014 (DIN EN 61243-3:2015-08) |
| Working temperature, max.: | 55 °C |
| Working temperature, min.: | -15 °C |
| ETIM 6.0: | EC000494 |
| ETIM 7.0: | EC000494 |
| eClass 9.0: | 27-20-03-08 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-08 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.356 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
