9448040000
RS 8AI1AO MICRO SD S
Request a Quote
Image copyright: Weidmueller

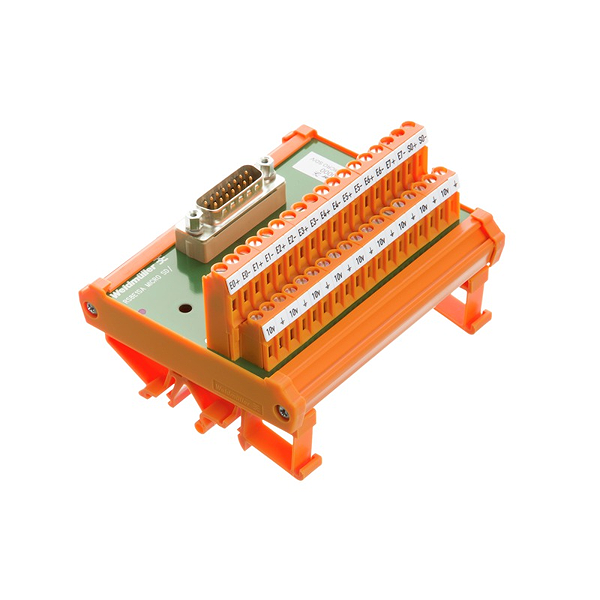

Weidmueller 9448040000
RS 8AI1AO MICRO SD S
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RS 8AI1AO MICRO SD S |
| Order No.: | 9448040000 |
| Version: | Interface, RS, 1-wire, Screw connection |
| GTIN (EAN): | 4032248253357 |
| Qty.: | 1 pc(s). |
| Length: | 100 mm |
| Length (inches): | 3.937 inch |
| Width: | 87 mm |
| Width (inches): | 3.425 inch |
| Height: | 72 mm |
| Height (inches): | 2.835 inch |
| Net weight: | 210 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -20...50 °C |
| Storage temperature: | -40...60 °C |
| LED status display per channel: | No |
| Disconnection per channel: | Yes |
| Voltage point of measurement: | Yes |
| Current-measuring testpoint: | No |
| Type of test point: | No |
| LED status of the supply voltage: | No |
| Power supply fuse: | No |
| Common pole polarity: | Yes |
| Connection to PLC: | 15-pole D-SUB male connector |
| Connection on control side: | D-sub connectors, acc. to IEC 60807 / DIN 41652 |
| Number of poles (control side): | 15-pole plug |
| Connection (field side): | LP2N 5.08mm |
| Connection supply: | LP2N 5.08mm |
| Wiring system: | 1-wire |
| Protective earth connection: | Shielding in SUB-D plug-in connector |
| Operating voltage: | ≤ 25 V AC / 50 V DC |
| Max. current for common pole: | 3.15 A |
| Max. current per channel: | 0.5 A |
| According to: | DIN EN 50178 |
| Rated insulation voltage: | < 50 V AC |
| Surge voltage category: | III |
| Pollution severity level: | 2 |
| Pulse voltage test (1,2/50μs): | 0.8 kV |
| Insulation test voltage: | 0.35 kVAC |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Sleeve with plastic collar, max.: | 2.5 mm² |
| Min. wire cross-section, AWG: | AWG 26 |
| Max. wire cross-section, AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Ferrule with plastic collar, max.: | 2.5 mm² |
| Wire cross-section, min. AWG: | AWG 26 |
| Wire cross-section, max. AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| ETIM 6.0: | EC002780 |
| ETIM 7.0: | EC002780 |
| eClass 9.0: | 27-14-11-52 |
| eClass 9.1: | 27-14-11-52 |
| eClass 10.0: | 27-14-11-52 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | RS 8AI1AO MICRO SD S |
| Order No.: | 9448040000 |
| Version: | Interface, RS, 1-wire, Screw connection |
| GTIN (EAN): | 4032248253357 |
| Qty.: | 1 pc(s). |
| Length: | 100 mm |
| Length (inches): | 3.937 inch |
| Width: | 87 mm |
| Width (inches): | 3.425 inch |
| Height: | 72 mm |
| Height (inches): | 2.835 inch |
| Net weight: | 210 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -20...50 °C |
| Storage temperature: | -40...60 °C |
| LED status display per channel: | No |
| Disconnection per channel: | Yes |
| Voltage point of measurement: | Yes |
| Current-measuring testpoint: | No |
| Type of test point: | No |
| LED status of the supply voltage: | No |
| Power supply fuse: | No |
| Common pole polarity: | Yes |
| Connection to PLC: | 15-pole D-SUB male connector |
| Connection on control side: | D-sub connectors, acc. to IEC 60807 / DIN 41652 |
| Number of poles (control side): | 15-pole plug |
| Connection (field side): | LP2N 5.08mm |
| Connection supply: | LP2N 5.08mm |
| Wiring system: | 1-wire |
| Protective earth connection: | Shielding in SUB-D plug-in connector |
| Operating voltage: | ≤ 25 V AC / 50 V DC |
| Max. current for common pole: | 3.15 A |
| Max. current per channel: | 0.5 A |
| According to: | DIN EN 50178 |
| Rated insulation voltage: | < 50 V AC |
| Surge voltage category: | III |
| Pollution severity level: | 2 |
| Pulse voltage test (1,2/50μs): | 0.8 kV |
| Insulation test voltage: | 0.35 kVAC |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Sleeve with plastic collar, max.: | 2.5 mm² |
| Min. wire cross-section, AWG: | AWG 26 |
| Max. wire cross-section, AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Ferrule with plastic collar, max.: | 2.5 mm² |
| Wire cross-section, min. AWG: | AWG 26 |
| Wire cross-section, max. AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| ETIM 6.0: | EC002780 |
| ETIM 7.0: | EC002780 |
| eClass 9.0: | 27-14-11-52 |
| eClass 9.1: | 27-14-11-52 |
| eClass 10.0: | 27-14-11-52 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
