Product
Weidmueller
9445180000
RSM16 1T/CDE-EV 24V-H/V
Request a Quote

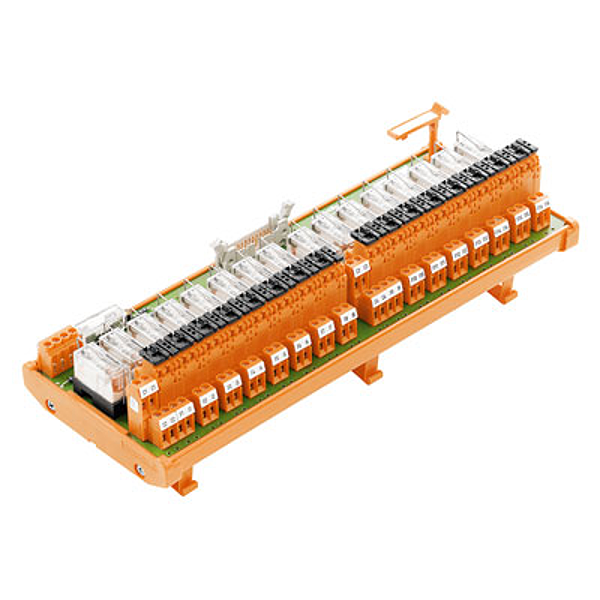

Image copyright: Weidmueller
Weidmueller 9445180000
RSM16 1T/CDE-EV 24V-H/V
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RSM16 1T/CDE-EV 24V-H/V |
| Order No.: | 9445180000 |
| Version: | Interface, RSM, 16 with fuse, RCL, Screw connection |
| GTIN (EAN): | 4032248252862 |
| Qty.: | 1 pc(s). |
| Length: | 290 mm |
| Length (inches): | 11.417 inch |
| Width: | 109 mm |
| Width (inches): | 4.291 inch |
| Height: | 75 mm |
| Height (inches): | 2.953 inch |
| Net weight: | 968 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25...40 °C |
| Storage temperature: | -40...60 °C |
| LED status display per relay: | green |
| Fuse per relay: | Yes |
| Switch: | Yes (contacts side) |
| LED status of the supply voltage: | yellow |
| Power supply fuse: | 3.15 A |
| Connection to PLC: | HE 10 connector - 20 pole |
| Connection on control side: | Plug-in connector in acc. with IEC60603-13 / DIN41651 |
| Number of poles (control side): | 20-pole plug |
| Connection (field side): | LP 5.08mm |
| Connection supply: | LP 5.08mm |
| Input voltage: | 24 V DC ± 10% |
| Input current: | 17 mA |
| Power rating: | 0.4 VA |
| Relay type: | RCL |
| Type of output: | Potential-free contact |
| Contact material: | AgNi 90/10 |
| Rated voltage (text): | ≤ 250 Vdc ≤ 250 Vac |
| Max. AC continuous current: | 5 A |
| AC peak current: | 16 A |
| According to: | DIN EN 50178 |
| Rated input insulation voltage: | < 50 V AC |
| Rated output insulation voltage: | < 250 V AC |
| Overvoltage category input/output: | III |
| Overvoltage category input/input: | III |
| Overvoltage category output/output: | II |
| Pollution severity level: | 2 |
| Pulse voltage test (1,2/50μs): | 6 kV |
| Insulation test voltage: | 1.2 kVAC |
| Clearance input/output: | ≥ 5.5 mm |
| Clearance input/input: | ≥ 0.2 mm |
| Clearance output/output: | ≥ 1.17 mm |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Sleeve with plastic collar, max.: | 2.5 mm² |
| Min. wire cross-section, AWG: | AWG 26 |
| Max. wire cross-section, AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Ferrule with plastic collar, max.: | 2.5 mm² |
| Wire cross-section, min. AWG: | AWG 26 |
| Wire cross-section, max. AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| ETIM 6.0: | EC002780 |
| ETIM 7.0: | EC002780 |
| eClass 9.0: | 27-14-11-52 |
| eClass 9.1: | 27-24-22-16 |
| eClass 10.0: | 27-14-11-52 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | RSM16 1T/CDE-EV 24V-H/V |
| Order No.: | 9445180000 |
| Version: | Interface, RSM, 16 with fuse, RCL, Screw connection |
| GTIN (EAN): | 4032248252862 |
| Qty.: | 1 pc(s). |
| Length: | 290 mm |
| Length (inches): | 11.417 inch |
| Width: | 109 mm |
| Width (inches): | 4.291 inch |
| Height: | 75 mm |
| Height (inches): | 2.953 inch |
| Net weight: | 968 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25...40 °C |
| Storage temperature: | -40...60 °C |
| LED status display per relay: | green |
| Fuse per relay: | Yes |
| Switch: | Yes (contacts side) |
| LED status of the supply voltage: | yellow |
| Power supply fuse: | 3.15 A |
| Connection to PLC: | HE 10 connector - 20 pole |
| Connection on control side: | Plug-in connector in acc. with IEC60603-13 / DIN41651 |
| Number of poles (control side): | 20-pole plug |
| Connection (field side): | LP 5.08mm |
| Connection supply: | LP 5.08mm |
| Input voltage: | 24 V DC ± 10% |
| Input current: | 17 mA |
| Power rating: | 0.4 VA |
| Relay type: | RCL |
| Type of output: | Potential-free contact |
| Contact material: | AgNi 90/10 |
| Rated voltage (text): | ≤ 250 Vdc ≤ 250 Vac |
| Max. AC continuous current: | 5 A |
| AC peak current: | 16 A |
| According to: | DIN EN 50178 |
| Rated input insulation voltage: | < 50 V AC |
| Rated output insulation voltage: | < 250 V AC |
| Overvoltage category input/output: | III |
| Overvoltage category input/input: | III |
| Overvoltage category output/output: | II |
| Pollution severity level: | 2 |
| Pulse voltage test (1,2/50μs): | 6 kV |
| Insulation test voltage: | 1.2 kVAC |
| Clearance input/output: | ≥ 5.5 mm |
| Clearance input/input: | ≥ 0.2 mm |
| Clearance output/output: | ≥ 1.17 mm |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Sleeve with plastic collar, max.: | 2.5 mm² |
| Min. wire cross-section, AWG: | AWG 26 |
| Max. wire cross-section, AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| Type of connection: | Screw connection |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 6 mm² |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 4 mm² |
| Flexible with sleeve, max.: | 2.5 mm² |
| Flexible with sleeve, min.: | 0.5 mm² |
| Ferrule with plastic collar, max.: | 2.5 mm² |
| Wire cross-section, min. AWG: | AWG 26 |
| Wire cross-section, max. AWG: | AWG 12 |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Stripping length: | 6 mm |
| ETIM 6.0: | EC002780 |
| ETIM 7.0: | EC002780 |
| eClass 9.0: | 27-14-11-52 |
| eClass 9.1: | 27-24-22-16 |
| eClass 10.0: | 27-14-11-52 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.968 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
