Product
Weidmueller
9430320000
RSO31-OAC24/F
Request a Quote

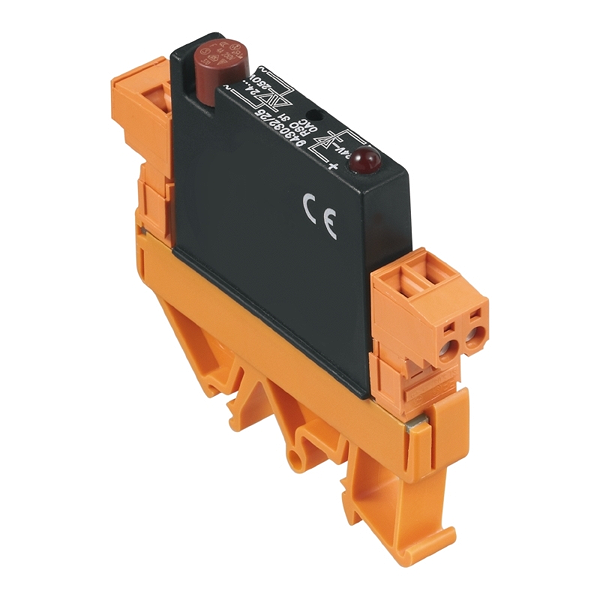

Image copyright: Weidmueller
Weidmueller 9430320000
RSO31-OAC24/F
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RSO31-OAC24/F |
| Order No.: | 9430320000 |
| Version: | RS-SERIES, solid-state relais, 1 NO contact (Triac (zero-cross switch)), Rated control voltage: 24 V DC ±10 % , Rated switching voltage: 24...250 V AC, Continuous current: 3 A, Screw connection |
| GTIN (EAN): | 4008190442569 |
| Qty.: | 20 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 68 mm |
| Depth (inches): | 2.677 inch |
| Net weight: | 43.1 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...40 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V DC ±10 % |
| Nominal control current: | 11 mA DC |
| Power rating: | 0.29 W |
| Status indicator: | red LED |
| Rated switching voltage: | 24...250 V AC |
| Continuous current: | 3 A |
| Voltage drop at max. load: | 1.6 V |
| Leakage current: | < 5 mA |
| Min. switching current: | 20 mA |
| Short-circuit-proof: | No |
| Protective circuit, load side: | RC element |
| Contact type: | 1 NO contact (Triac (zero-cross switch)) |
| Rail: | TS 32, TS 35 |
| Colour: | orange |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | ≥ 8 mm |
| Impulse withstand voltage: | 4 kV |
| Standards: | DIN EN 50178 |
| Wire connection method: | Screw connection |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | RSO31-OAC24/F |
| Order No.: | 9430320000 |
| Version: | RS-SERIES, solid-state relais, 1 NO contact (Triac (zero-cross switch)), Rated control voltage: 24 V DC ±10 % , Rated switching voltage: 24...250 V AC, Continuous current: 3 A, Screw connection |
| GTIN (EAN): | 4008190442569 |
| Qty.: | 20 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 68 mm |
| Depth (inches): | 2.677 inch |
| Net weight: | 43.1 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...40 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V DC ±10 % |
| Nominal control current: | 11 mA DC |
| Power rating: | 0.29 W |
| Status indicator: | red LED |
| Rated switching voltage: | 24...250 V AC |
| Continuous current: | 3 A |
| Voltage drop at max. load: | 1.6 V |
| Leakage current: | < 5 mA |
| Min. switching current: | 20 mA |
| Short-circuit-proof: | No |
| Protective circuit, load side: | RC element |
| Contact type: | 1 NO contact (Triac (zero-cross switch)) |
| Rail: | TS 32, TS 35 |
| Colour: | orange |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | ≥ 8 mm |
| Impulse withstand voltage: | 4 kV |
| Standards: | DIN EN 50178 |
| Wire connection method: | Screw connection |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.044 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
