Product
Weidmueller
9423580000
MULTIMETER 1037
Request a Quote
Image copyright: Weidmueller

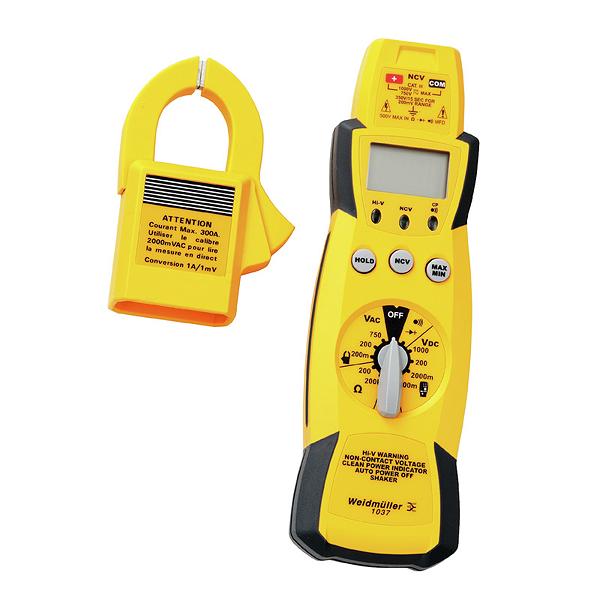

Weidmueller 9423580000
MULTIMETER 1037
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MULTIMETER 1037 |
| Order No.: | 9423580000 |
| Version: | Multimeter |
| GTIN (EAN): | 4032248406142 |
| Qty.: | 1 pc(s). |
| Width: | 214.5 mm |
| Width (inches): | 8.445 inch |
| Height: | 44 mm |
| Height (inches): | 1.732 inch |
| Depth: | 66 mm |
| Depth (inches): | 2.598 inch |
| Weight: | 258 g |
| Net weight: | 880 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Multimeter + clamp-on meter |
| AC voltage measuring range: | 0.2 - 750 V |
| Battery type: | 9V block battery |
| DC voltage measuring range: | 0,2 - 1000 V |
| Display: | digital |
| Frequency measurement: | No |
| Frequency range, max.: | 500 Hz |
| Frequency range, min.: | 50 Hz |
| Measured capacitance value, max.: | 200 µF |
| Measured current value, max.: | 200 A |
| Measuring range category: | CAT III |
| Opening width of current-measuring clamp-on attachment: | 23 mm |
| Resistance measuring range, max.: | 200 kΩ |
| Resistance measuring range, min.: | 0.2 Ω |
| Selection of measuring range: | Manual |
| Test probe: | Yes |
| Tested and approved according to: | EN/IEC 61010-1 |
| Working temperature, max.: | 50 °C |
| Working temperature, min.: | 0 °C |
| ETIM 6.0: | EC000069 |
| ETIM 7.0: | EC000069 |
| eClass 9.0: | 27-20-03-01 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-01 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
| Type: | MULTIMETER 1037 |
| Order No.: | 9423580000 |
| Version: | Multimeter |
| GTIN (EAN): | 4032248406142 |
| Qty.: | 1 pc(s). |
| Width: | 214.5 mm |
| Width (inches): | 8.445 inch |
| Height: | 44 mm |
| Height (inches): | 1.732 inch |
| Depth: | 66 mm |
| Depth (inches): | 2.598 inch |
| Weight: | 258 g |
| Net weight: | 880 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Multimeter + clamp-on meter |
| AC voltage measuring range: | 0.2 - 750 V |
| Battery type: | 9V block battery |
| DC voltage measuring range: | 0,2 - 1000 V |
| Display: | digital |
| Frequency measurement: | No |
| Frequency range, max.: | 500 Hz |
| Frequency range, min.: | 50 Hz |
| Measured capacitance value, max.: | 200 µF |
| Measured current value, max.: | 200 A |
| Measuring range category: | CAT III |
| Opening width of current-measuring clamp-on attachment: | 23 mm |
| Resistance measuring range, max.: | 200 kΩ |
| Resistance measuring range, min.: | 0.2 Ω |
| Selection of measuring range: | Manual |
| Test probe: | Yes |
| Tested and approved according to: | EN/IEC 61010-1 |
| Working temperature, max.: | 50 °C |
| Working temperature, min.: | 0 °C |
| ETIM 6.0: | EC000069 |
| ETIM 7.0: | EC000069 |
| eClass 9.0: | 27-20-03-01 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-01 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.88 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
