Product
Weidmueller
9205430000
CTIN CM 1.6/2.5
Request a Quote

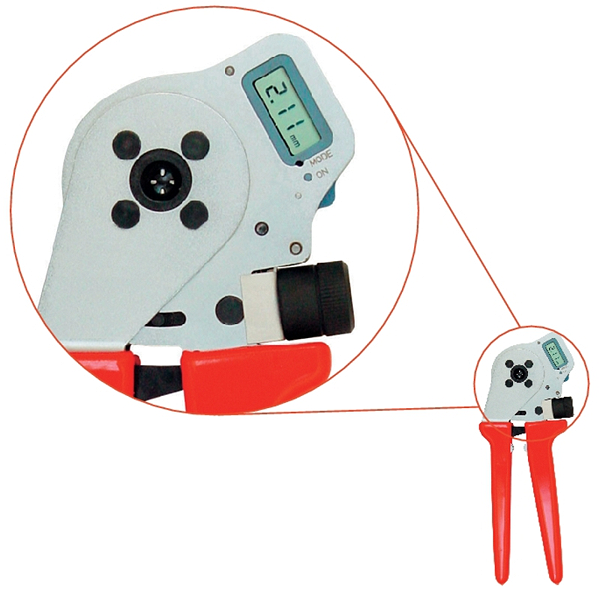

Image copyright: Weidmueller
Weidmueller 9205430000
CTIN CM 1.6/2.5
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CTIN CM 1.6/2.5 |
| Order No.: | 9205430000 |
| Version: | Pressing tool, Crimping tool for contacts, 0.14mm², 6mm², 4-indent crimp |
| GTIN (EAN): | 4032248733446 |
| Qty.: | 1 pc(s). |
| Width: | 230 mm |
| Width (inches): | 9.055 inch |
| Weight: | 1,220 g |
| Net weight: | 1,175 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | Turned contacts |
| Crimping range, min.: | 0.14 mm² |
| Crimping range, max.: | 6 mm² |
| Conductor cross-section, max. AWG: | AWG 10 |
| Conductor cross-section, min. AWG: | AWG 26 |
| Crimping profile 1, min.: | 0.14 mm² |
| Crimping type/profile: | 4-indent crimp |
| Crimping profile 1, max.: | 6 mm² |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 23-17-16-04 |
| Type: | CTIN CM 1.6/2.5 |
| Order No.: | 9205430000 |
| Version: | Pressing tool, Crimping tool for contacts, 0.14mm², 6mm², 4-indent crimp |
| GTIN (EAN): | 4032248733446 |
| Qty.: | 1 pc(s). |
| Width: | 230 mm |
| Width (inches): | 9.055 inch |
| Weight: | 1,220 g |
| Net weight: | 1,175 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | Mechanical, without interchangeable inserts |
| Type of contact: | Turned contacts |
| Crimping range, min.: | 0.14 mm² |
| Crimping range, max.: | 6 mm² |
| Conductor cross-section, max. AWG: | AWG 10 |
| Conductor cross-section, min. AWG: | AWG 26 |
| Crimping profile 1, min.: | 0.14 mm² |
| Crimping type/profile: | 4-indent crimp |
| Crimping profile 1, max.: | 6 mm² |
| ETIM 6.0: | EC000168 |
| ETIM 7.0: | EC000168 |
| eClass 9.0: | 21-04-38-11 |
| eClass 9.1: | 21-04-38-11 |
| eClass 10.0: | 21-04-38-11 |
| UNSPSC: | 23-17-16-04 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.234 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
