Product
Weidmueller
9205050000
LSP 4L
Request a Quote
Image copyright: Weidmueller

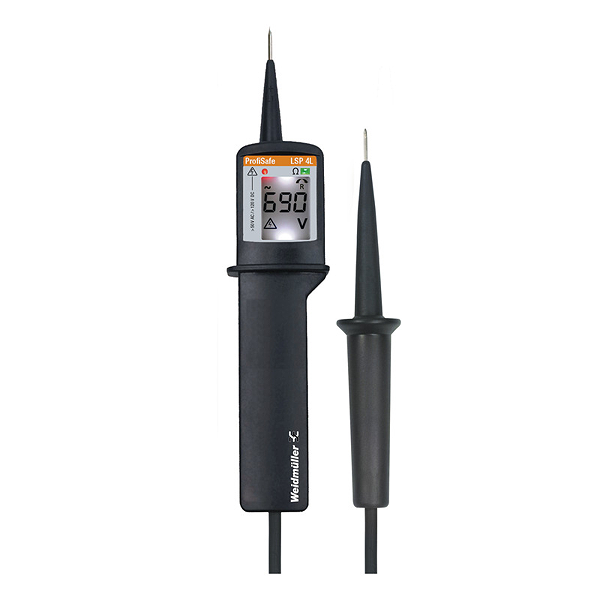

Weidmueller 9205050000
LSP 4L
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | LSP 4L |
| Order No.: | 9205050000 |
| Version: | 2-pole voltage tester type 1153 |
| GTIN (EAN): | 4032248697311 |
| Qty.: | 1 pc(s). |
| Width: | 231 mm |
| Width (inches): | 9.094 inch |
| Height: | 37 mm |
| Height (inches): | 1.457 inch |
| Depth: | 48 mm |
| Depth (inches): | 1.89 inch |
| Weight: | 170 g |
| Net weight: | 173.5 g |
| REACH SVHC: | Lead 7439-92-1 |
| AC voltage measuring range: | 12-690 V |
| Continuity test: | Yes |
| DC voltage measuring range: | 690 V |
| Display: | digital |
| Frequency range, max.: | 500 Hz |
| Frequency range, min.: | 0 Hz |
| Measuring range category: | CAT III – 690V/CAT IV – 600V |
| Peak voltage resistance: | 8 kV |
| Protection degree: | IP65 |
| Rated voltage, max.: | 690 V AC/DC |
| Rated voltage, min.: | 12 V AC/DC |
| Tested and approved according to: | EN/IEC 61243-3 :2010-10 (VDE 0682 Part 401) |
| Working temperature, max.: | 45 °C |
| Working temperature, min.: | -15 °C |
| ETIM 6.0: | EC000494 |
| ETIM 7.0: | EC000494 |
| eClass 9.0: | 27-20-03-08 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-08 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
| Type: | LSP 4L |
| Order No.: | 9205050000 |
| Version: | 2-pole voltage tester type 1153 |
| GTIN (EAN): | 4032248697311 |
| Qty.: | 1 pc(s). |
| Width: | 231 mm |
| Width (inches): | 9.094 inch |
| Height: | 37 mm |
| Height (inches): | 1.457 inch |
| Depth: | 48 mm |
| Depth (inches): | 1.89 inch |
| Weight: | 170 g |
| Net weight: | 173.5 g |
| REACH SVHC: | Lead 7439-92-1 |
| AC voltage measuring range: | 12-690 V |
| Continuity test: | Yes |
| DC voltage measuring range: | 690 V |
| Display: | digital |
| Frequency range, max.: | 500 Hz |
| Frequency range, min.: | 0 Hz |
| Measuring range category: | CAT III – 690V/CAT IV – 600V |
| Peak voltage resistance: | 8 kV |
| Protection degree: | IP65 |
| Rated voltage, max.: | 690 V AC/DC |
| Rated voltage, min.: | 12 V AC/DC |
| Tested and approved according to: | EN/IEC 61243-3 :2010-10 (VDE 0682 Part 401) |
| Working temperature, max.: | 45 °C |
| Working temperature, min.: | -15 °C |
| ETIM 6.0: | EC000494 |
| ETIM 7.0: | EC000494 |
| eClass 9.0: | 27-20-03-08 |
| eClass 9.1: | 27-20-03-08 |
| eClass 10.0: | 27-20-03-08 |
| UNSPSC: | 41-11-36-37 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.231 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
