Product
Weidmueller
9202080000
KT 80
Request a Quote

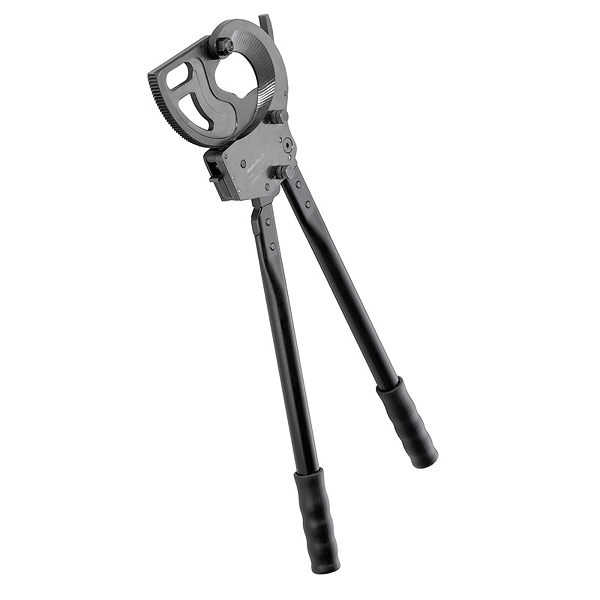

Image copyright: Weidmueller
Weidmueller 9202080000
KT 80
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | KT 80 |
| Order No.: | 9202080000 |
| Version: | Cutting tools ,Circular cable cutter |
| GTIN (EAN): | 4032248482313 |
| Qty.: | 1 pc(s). |
| Width: | 675 mm |
| Width (inches): | 26.575 inch |
| Height: | 175 mm |
| Height (inches): | 6.89 inch |
| Depth: | 55 mm |
| Depth (inches): | 2.165 inch |
| Weight: | 3,240 g |
| Net weight: | 3,500 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | One-hand mechanical |
| Aluminium sector cable: | 4 x 240 SE |
| Copper cable - flexible, max.: | 630 mm² |
| Copper cable - flexible, max. (kcmil): | 1,260 kcmil |
| Copper cable - stranded, max.: | 630 mm² |
| Copper cable - stranded, max. (kcmil): | 1,260 kcmil |
| Copper cable, max. diameter: | 80 mm |
| Copper sector cable: | 3 x 240 SM |
| Data / telephone / control cable, max. Ø: | 80 mm |
| Stranded aluminium cable, max (mm²): | 1,000 mm² |
| Stranded aluminium cable, max. (kcmil): | 2,000 kcmil |
| ETIM 6.0: | EC000142 |
| ETIM 7.0: | EC000142 |
| eClass 9.0: | 21-04-47-01 |
| eClass 9.1: | 21-04-90-11 |
| eClass 10.0: | 21-04-47-01 |
| UNSPSC: | 31-16-31-02 |
| Type: | KT 80 |
| Order No.: | 9202080000 |
| Version: | Cutting tools ,Circular cable cutter |
| GTIN (EAN): | 4032248482313 |
| Qty.: | 1 pc(s). |
| Width: | 675 mm |
| Width (inches): | 26.575 inch |
| Height: | 175 mm |
| Height (inches): | 6.89 inch |
| Depth: | 55 mm |
| Depth (inches): | 2.165 inch |
| Weight: | 3,240 g |
| Net weight: | 3,500 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | One-hand mechanical |
| Aluminium sector cable: | 4 x 240 SE |
| Copper cable - flexible, max.: | 630 mm² |
| Copper cable - flexible, max. (kcmil): | 1,260 kcmil |
| Copper cable - stranded, max.: | 630 mm² |
| Copper cable - stranded, max. (kcmil): | 1,260 kcmil |
| Copper cable, max. diameter: | 80 mm |
| Copper sector cable: | 3 x 240 SM |
| Data / telephone / control cable, max. Ø: | 80 mm |
| Stranded aluminium cable, max (mm²): | 1,000 mm² |
| Stranded aluminium cable, max. (kcmil): | 2,000 kcmil |
| ETIM 6.0: | EC000142 |
| ETIM 7.0: | EC000142 |
| eClass 9.0: | 21-04-47-01 |
| eClass 9.1: | 21-04-90-11 |
| eClass 10.0: | 21-04-47-01 |
| UNSPSC: | 31-16-31-02 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 3.65 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
