Product
Weidmueller
9202040000
KT 45 R
Request a Quote
Image copyright: Weidmueller

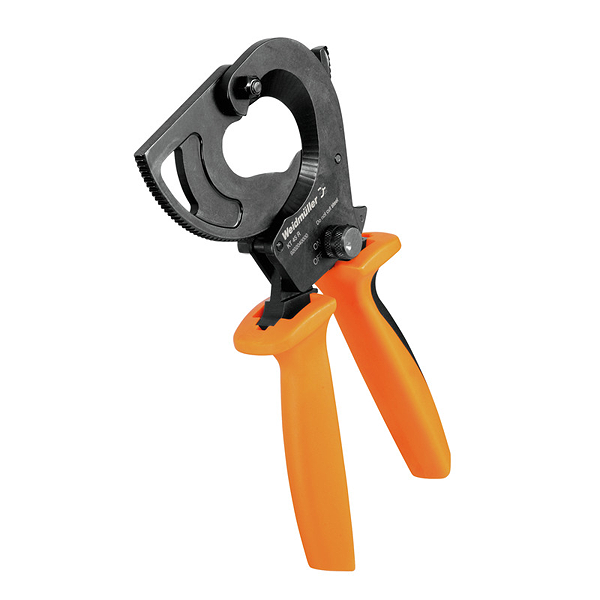

Weidmueller 9202040000
KT 45 R
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | KT 45 R |
| Order No.: | 9202040000 |
| Version: | Cutting tools ,Circular cable cutter |
| GTIN (EAN): | 4032248482160 |
| Qty.: | 1 pc(s). |
| Width: | 290 mm |
| Width (inches): | 11.417 inch |
| Height: | 85 mm |
| Height (inches): | 3.346 inch |
| Depth: | 40 mm |
| Depth (inches): | 1.575 inch |
| Weight: | 740 g |
| Net weight: | 985.1 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | One-hand mechanical |
| Aluminium sector cable: | 4 x 70 SE |
| Copper cable - flexible, max.: | 400 mm² |
| Copper cable - flexible, max. (kcmil): | 800 kcmil |
| Copper cable - stranded, max.: | 300 mm² |
| Copper cable - stranded, max. (kcmil): | 600 kcmil |
| Copper cable, max. diameter: | 45 mm |
| Copper sector cable: | 3 x 70 SM |
| Data / telephone / control cable, max. Ø: | 45 mm |
| Stranded aluminium cable, max (mm²): | 400 mm² |
| Stranded aluminium cable, max. (kcmil): | 800 kcmil |
| Stranded aluminium cable, max. diameter: | 45 mm |
| ETIM 6.0: | EC000142 |
| ETIM 7.0: | EC000142 |
| eClass 9.0: | 21-04-47-01 |
| eClass 9.1: | 21-04-37-06 |
| eClass 10.0: | 21-04-47-01 |
| UNSPSC: | 31-16-31-02 |
| Type: | KT 45 R |
| Order No.: | 9202040000 |
| Version: | Cutting tools ,Circular cable cutter |
| GTIN (EAN): | 4032248482160 |
| Qty.: | 1 pc(s). |
| Width: | 290 mm |
| Width (inches): | 11.417 inch |
| Height: | 85 mm |
| Height (inches): | 3.346 inch |
| Depth: | 40 mm |
| Depth (inches): | 1.575 inch |
| Weight: | 740 g |
| Net weight: | 985.1 g |
| REACH SVHC: | Lead 7439-92-1 |
| Version: | One-hand mechanical |
| Aluminium sector cable: | 4 x 70 SE |
| Copper cable - flexible, max.: | 400 mm² |
| Copper cable - flexible, max. (kcmil): | 800 kcmil |
| Copper cable - stranded, max.: | 300 mm² |
| Copper cable - stranded, max. (kcmil): | 600 kcmil |
| Copper cable, max. diameter: | 45 mm |
| Copper sector cable: | 3 x 70 SM |
| Data / telephone / control cable, max. Ø: | 45 mm |
| Stranded aluminium cable, max (mm²): | 400 mm² |
| Stranded aluminium cable, max. (kcmil): | 800 kcmil |
| Stranded aluminium cable, max. diameter: | 45 mm |
| ETIM 6.0: | EC000142 |
| ETIM 7.0: | EC000142 |
| eClass 9.0: | 21-04-47-01 |
| eClass 9.1: | 21-04-37-06 |
| eClass 10.0: | 21-04-47-01 |
| UNSPSC: | 31-16-31-02 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.991 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
