Product
Weidmueller
9046330000
SE HD 180
Request a Quote

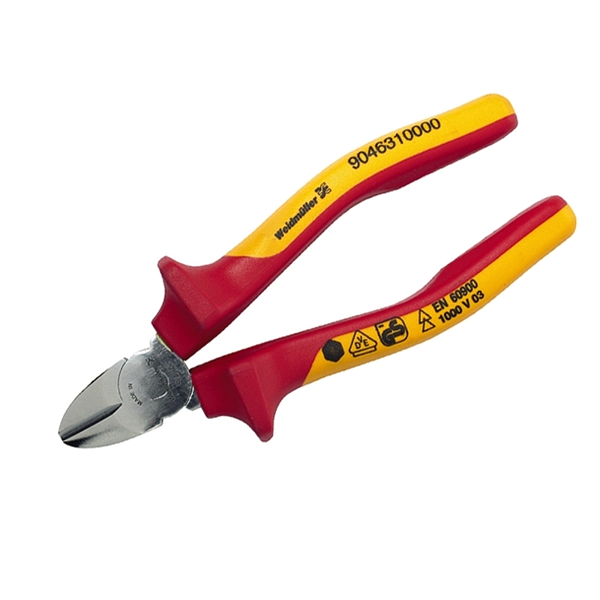

Image copyright: Weidmueller
Weidmueller 9046330000
SE HD 180
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SE HD 180 |
| Order No.: | 9046330000 |
| Version: | VDE-insulated diagonal-cutting pliers, 180 mm long |
| GTIN (EAN): | 4032248357635 |
| Qty.: | 1 pc(s). |
| Width: | 180 mm |
| Width (inches): | 7.087 inch |
| Weight: | 291 g |
| Net weight: | 194 g |
| REACH SVHC: | Lead 7439-92-1 |
| Conductor diameter, max. (H): | 3 mm |
| Conductor diameter, max. (MH): | 3.8 mm |
| Conductor diameter, max. (P): | 1.8 mm |
| Cutter hardness: | 62 HRC |
| Protective insulation, 1000 V: | Yes |
| Shape (diagonal-cutting pliers): | Standard |
| Total length: | 180 mm |
| ETIM 6.0: | EC000142 |
| ETIM 7.0: | EC000142 |
| eClass 9.0: | 21-04-47-01 |
| eClass 9.1: | 21-04-37-06 |
| eClass 10.0: | 21-04-47-01 |
| UNSPSC: | 23-17-16-04 |
| Type: | SE HD 180 |
| Order No.: | 9046330000 |
| Version: | VDE-insulated diagonal-cutting pliers, 180 mm long |
| GTIN (EAN): | 4032248357635 |
| Qty.: | 1 pc(s). |
| Width: | 180 mm |
| Width (inches): | 7.087 inch |
| Weight: | 291 g |
| Net weight: | 194 g |
| REACH SVHC: | Lead 7439-92-1 |
| Conductor diameter, max. (H): | 3 mm |
| Conductor diameter, max. (MH): | 3.8 mm |
| Conductor diameter, max. (P): | 1.8 mm |
| Cutter hardness: | 62 HRC |
| Protective insulation, 1000 V: | Yes |
| Shape (diagonal-cutting pliers): | Standard |
| Total length: | 180 mm |
| ETIM 6.0: | EC000142 |
| ETIM 7.0: | EC000142 |
| eClass 9.0: | 21-04-47-01 |
| eClass 9.1: | 21-04-37-06 |
| eClass 10.0: | 21-04-47-01 |
| UNSPSC: | 23-17-16-04 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.264 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
