Product
Weidmueller
9027270000
POWERSTRIPPER AO 2,5-20
Request a Quote

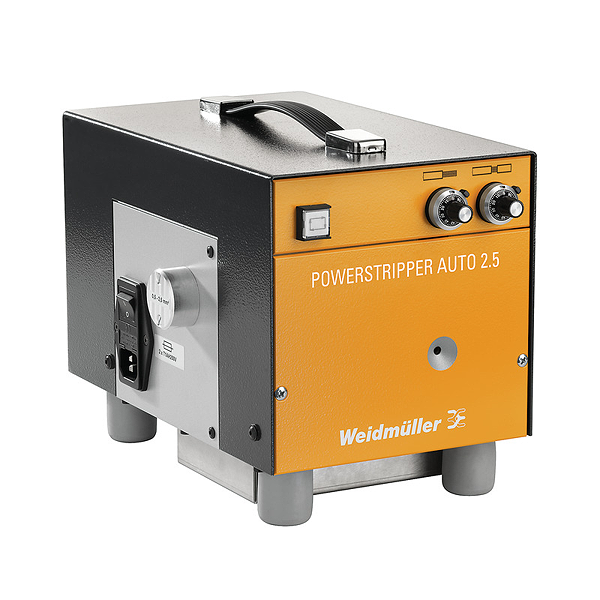

Image copyright: Weidmueller
Weidmueller 9027270000
POWERSTRIPPER AO 2,5-20
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | POWERSTRIPPER AO 2,5-20 |
| Order No.: | 9027270000 |
| Version: | Automatic machines, Automatic stripper |
| GTIN (EAN): | 4032248285402 |
| Qty.: | 1 pc(s). |
| Width: | 190 mm |
| Width (inches): | 7.48 inch |
| Height: | 205 mm |
| Height (inches): | 8.071 inch |
| Depth: | 295 mm |
| Depth (inches): | 11.614 inch |
| Weight: | 9 kg |
| Net weight: | 8,500 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Conductor length, min.: | 22 mm + stripping length |
| Connection values: | 46 VA |
| Drive: | electrical |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Pull-off length: | 1-20 mm |
| Pulse time: | approx. 0.5 s |
| Stripping range: | 0.5 - 2.5 mm² (~AWG 20-14) |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-02 |
| eClass 10.0: | 17-13-01-02 |
| UNSPSC: | 27-11-28-14 |
| ROHS: | Conform |
| Type: | POWERSTRIPPER AO 2,5-20 |
| Order No.: | 9027270000 |
| Version: | Automatic machines, Automatic stripper |
| GTIN (EAN): | 4032248285402 |
| Qty.: | 1 pc(s). |
| Width: | 190 mm |
| Width (inches): | 7.48 inch |
| Height: | 205 mm |
| Height (inches): | 8.071 inch |
| Depth: | 295 mm |
| Depth (inches): | 11.614 inch |
| Weight: | 9 kg |
| Net weight: | 8,500 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Conductor length, min.: | 22 mm + stripping length |
| Connection values: | 46 VA |
| Drive: | electrical |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Pull-off length: | 1-20 mm |
| Pulse time: | approx. 0.5 s |
| Stripping range: | 0.5 - 2.5 mm² (~AWG 20-14) |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-02 |
| eClass 10.0: | 17-13-01-02 |
| UNSPSC: | 27-11-28-14 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 8.50 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
