Product
Weidmueller
7940007732
RRD3230C4
Request a Quote

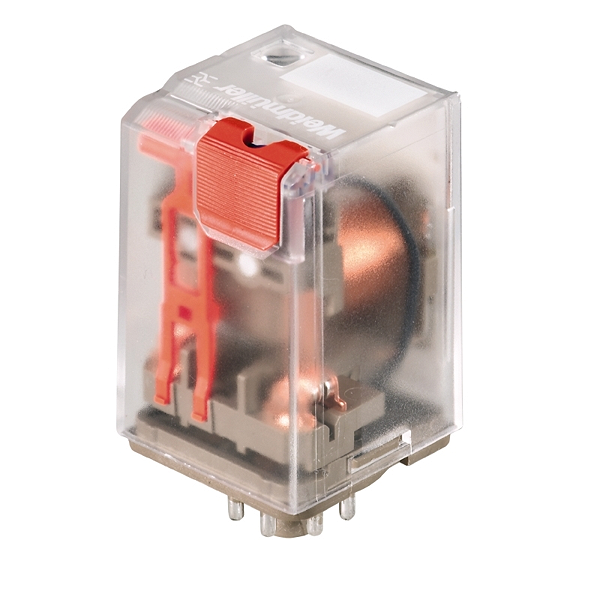

Image copyright: Weidmueller
Weidmueller 7940007732
RRD3230C4
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RRD3230C4 |
| Order No.: | 7940007732 |
| Version: | RIDERSERIES RRD, Relay, Number of contacts: 3, CO contact with test button AgNi 90/10, Rated control voltage: 24 V DC, Continuous current: 10 A, Plug-in connection |
| GTIN (EAN): | 4032248562657 |
| Qty.: | 25 pc(s). |
| Width: | 35.5 mm |
| Width (inches): | 1.398 inch |
| Height: | 35.5 mm |
| Height (inches): | 1.398 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Net weight: | 85.08 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| Certificate No. (cURus): | E224238 |
| Rated control voltage: | 24 V DC |
| Rated current DC: | 50.5 mA |
| Power rating: | 1.2 W |
| Pull-in/drop-out voltage, typ.: | 18 V / 2.4 V DC |
| Coil resistance: | 475 Ω ± 10 % |
| Status indicator: | red LED |
| Protective circuit: | Free-wheeling diode |
| Rated switching voltage: | 240 V AC |
| Max. switching voltage, AC: | 400 V |
| Continuous current: | 10 A |
| Inrush current: | 20 A / 20 ms |
| AC switching capacity (resistive), max.: | 2500 VA |
| DC switching capacity (resistive), max.: | 240 W @ 24 V |
| Switch-on delay: | ≤ 15 ms |
| Switch-off delay: | ≤ 30 ms |
| Min. switching power: | 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 3 CO contact with test button (AgNi 90/10) |
| Test button: | yes (lockable) |
| Mechanical switch position indicator: | Yes |
| Colour: | Transparent |
| UL 94 flammability rating: | V-2 |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIa |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≤ 3 mm |
| Impulse withstand voltage: | 2.5 kV (1.2/50 µs) |
| Standards: | IEC 61810-1, UL508 |
| Certificate No. (CSA): | 249409-2426937 |
| Certificate No. (cURus): | E224238 |
| Wire connection method: | Plug-in connection |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
| Type: | RRD3230C4 |
| Order No.: | 7940007732 |
| Version: | RIDERSERIES RRD, Relay, Number of contacts: 3, CO contact with test button AgNi 90/10, Rated control voltage: 24 V DC, Continuous current: 10 A, Plug-in connection |
| GTIN (EAN): | 4032248562657 |
| Qty.: | 25 pc(s). |
| Width: | 35.5 mm |
| Width (inches): | 1.398 inch |
| Height: | 35.5 mm |
| Height (inches): | 1.398 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Net weight: | 85.08 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...60 °C |
| Certificate No. (cURus): | E224238 |
| Rated control voltage: | 24 V DC |
| Rated current DC: | 50.5 mA |
| Power rating: | 1.2 W |
| Pull-in/drop-out voltage, typ.: | 18 V / 2.4 V DC |
| Coil resistance: | 475 Ω ± 10 % |
| Status indicator: | red LED |
| Protective circuit: | Free-wheeling diode |
| Rated switching voltage: | 240 V AC |
| Max. switching voltage, AC: | 400 V |
| Continuous current: | 10 A |
| Inrush current: | 20 A / 20 ms |
| AC switching capacity (resistive), max.: | 2500 VA |
| DC switching capacity (resistive), max.: | 240 W @ 24 V |
| Switch-on delay: | ≤ 15 ms |
| Switch-off delay: | ≤ 30 ms |
| Min. switching power: | 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 3 CO contact with test button (AgNi 90/10) |
| Test button: | yes (lockable) |
| Mechanical switch position indicator: | Yes |
| Colour: | Transparent |
| UL 94 flammability rating: | V-2 |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIa |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≤ 3 mm |
| Impulse withstand voltage: | 2.5 kV (1.2/50 µs) |
| Standards: | IEC 61810-1, UL508 |
| Certificate No. (CSA): | 249409-2426937 |
| Certificate No. (cURus): | E224238 |
| Wire connection method: | Plug-in connection |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.085 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
