Product
Weidmueller
7940006162
RCLKIT 24VAC 2CO LED RT
Request a Quote
Image copyright: Weidmueller

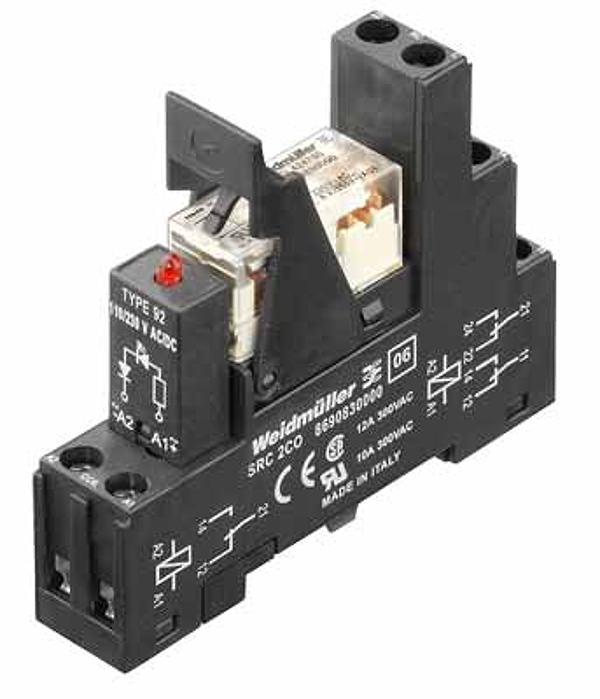

Weidmueller 7940006162
RCLKIT 24VAC 2CO LED RT
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RCLKIT 24VAC 2CO LED RT |
| Order No.: | 7940006162 |
| Version: | RIDERSERIES RCL, Relay module, Number of contacts: 2, CO contact AgNi 90/10, Rated control voltage: 24 V AC, Continuous current: 8 A, Screw connection |
| GTIN (EAN): | 4032248475018 |
| Qty.: | 10 pc(s). |
| Width: | 16 mm |
| Width (inches): | 0.63 inch |
| Height: | 78 mm |
| Height (inches): | 3.071 inch |
| Depth: | 66 mm |
| Depth (inches): | 2.598 inch |
| Net weight: | 67.4 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V AC |
| Rated current AC: | 31.6 mA |
| Power rating: | 0.75 VA |
| Coil resistance: | 350 Ω ± 10 % |
| Status indicator: | red LED |
| Protective circuit: | Free-wheeling diode |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 240 V |
| Continuous current: | 8 A |
| Inrush current: | 15 A / 4 s |
| AC switching capacity (resistive), max.: | 4000 VA |
| DC switching capacity (resistive), max.: | 384 W @ 24 V |
| Switch-on delay: | ≤ 10 ms |
| Switch-off delay: | ≤ 6 ms |
| Min. switching power: | 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| Contact type: | 2 CO contact (AgNi 90/10) |
| Rail: | TS 35 |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Colour: | black |
| UL 94 flammability rating: | V-2 |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178 |
| Certificate no. (CSA) relay: | 249409-2426937 |
| Certificate no. (cURus) relay: | E224238 |
| Certificate no. (cURus) base: | E223759 |
| Wire connection method: | Screw connection |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| Blade size: | size PH0 |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
| Type: | RCLKIT 24VAC 2CO LED RT |
| Order No.: | 7940006162 |
| Version: | RIDERSERIES RCL, Relay module, Number of contacts: 2, CO contact AgNi 90/10, Rated control voltage: 24 V AC, Continuous current: 8 A, Screw connection |
| GTIN (EAN): | 4032248475018 |
| Qty.: | 10 pc(s). |
| Width: | 16 mm |
| Width (inches): | 0.63 inch |
| Height: | 78 mm |
| Height (inches): | 3.071 inch |
| Depth: | 66 mm |
| Depth (inches): | 2.598 inch |
| Net weight: | 67.4 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated control voltage: | 24 V AC |
| Rated current AC: | 31.6 mA |
| Power rating: | 0.75 VA |
| Coil resistance: | 350 Ω ± 10 % |
| Status indicator: | red LED |
| Protective circuit: | Free-wheeling diode |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 240 V |
| Continuous current: | 8 A |
| Inrush current: | 15 A / 4 s |
| AC switching capacity (resistive), max.: | 4000 VA |
| DC switching capacity (resistive), max.: | 384 W @ 24 V |
| Switch-on delay: | ≤ 10 ms |
| Switch-off delay: | ≤ 6 ms |
| Min. switching power: | 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| Contact type: | 2 CO contact (AgNi 90/10) |
| Rail: | TS 35 |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Colour: | black |
| UL 94 flammability rating: | V-2 |
| Pollution severity: | 2 |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178 |
| Certificate no. (CSA) relay: | 249409-2426937 |
| Certificate no. (cURus) relay: | E224238 |
| Certificate no. (cURus) base: | E223759 |
| Wire connection method: | Screw connection |
| Clamping range, rated connection: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| Blade size: | size PH0 |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.067 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
