Weidmueller
7760056365
SDI 2CO P
Request a Quote

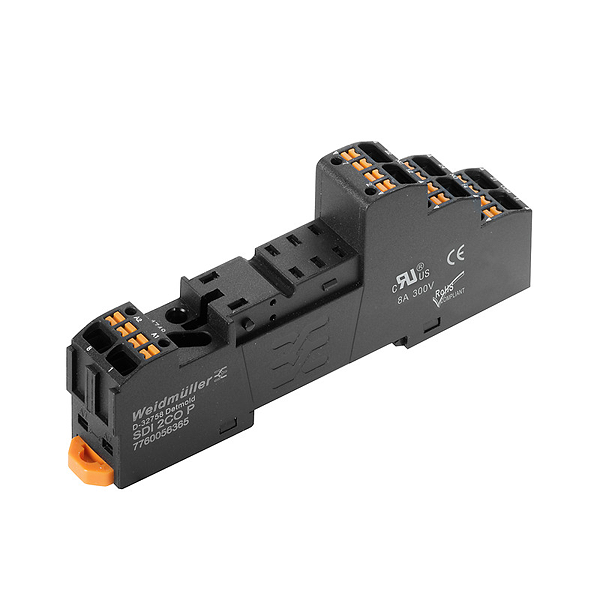

Image copyright: Weidmueller
Weidmueller 7760056365
SDI 2CO P
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SDI 2CO P |
| Order No.: | 7760056365 |
| Version: | D-SERIES DRI, Relay bases, Number of contacts: 2, CO contact, Continuous current: 8 A, PUSH IN |
| GTIN (EAN): | 6944169772290 |
| Qty.: | 20 pc(s). |
| Width: | 15.9 mm |
| Width (inches): | 0.626 inch |
| Height: | 102.1 mm |
| Height (inches): | 4.02 inch |
| Depth: | 42.7 mm |
| Depth (inches): | 1.681 inch |
| Net weight: | 38.72 g |
| Humidity: | 5...85 %, no condensation |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E312083 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 8 A |
| Contact type: | 2 CO contact |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIb |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 3 mm |
| Impulse withstand voltage at neighbouring contacts: | 4.8 kV (1.2/50 µs) |
| Certificate No. (cURus): | E312083 |
| Wire connection method: | PUSH IN |
| Stripping length, rated connection: | 10 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire cross-section, solid, min.: | 0.14 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.14 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.4 x 2.5 mm |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| ROHS: | Conform |
| Type: | SDI 2CO P |
| Order No.: | 7760056365 |
| Version: | D-SERIES DRI, Relay bases, Number of contacts: 2, CO contact, Continuous current: 8 A, PUSH IN |
| GTIN (EAN): | 6944169772290 |
| Qty.: | 20 pc(s). |
| Width: | 15.9 mm |
| Width (inches): | 0.626 inch |
| Height: | 102.1 mm |
| Height (inches): | 4.02 inch |
| Depth: | 42.7 mm |
| Depth (inches): | 1.681 inch |
| Net weight: | 38.72 g |
| Humidity: | 5...85 %, no condensation |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E312083 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 8 A |
| Contact type: | 2 CO contact |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIb |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 3 mm |
| Impulse withstand voltage at neighbouring contacts: | 4.8 kV (1.2/50 µs) |
| Certificate No. (cURus): | E312083 |
| Wire connection method: | PUSH IN |
| Stripping length, rated connection: | 10 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 16 |
| Wire cross-section, solid, min.: | 0.14 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.14 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Blade size: | 0.4 x 2.5 mm |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.041 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
