Product
Weidmueller
7760056226
SLD F 3CO
Request a Quote

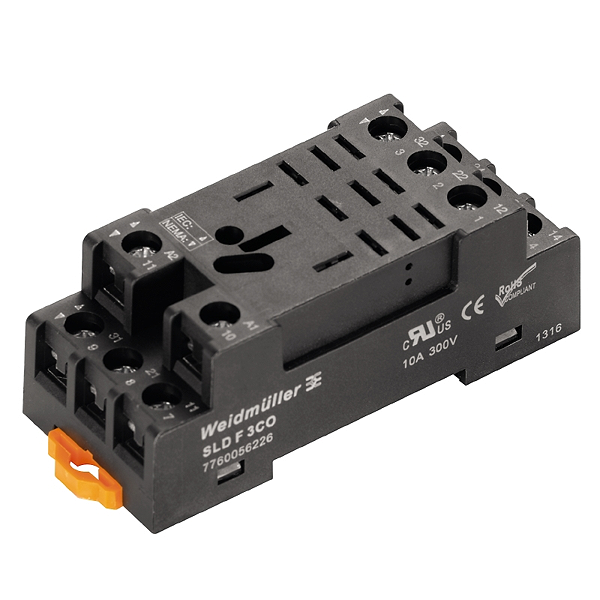

Image copyright: Weidmueller
Weidmueller 7760056226
SLD F 3CO
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SLD F 3CO |
| Order No.: | 7760056226 |
| Version: | D-SERIES DRL, Relay bases, Number of contacts: 3, CO contact, Continuous current: 10 A, Screw connection |
| GTIN (EAN): | 6944169634024 |
| Qty.: | 10 pc(s). |
| Width: | 34 mm |
| Width (inches): | 1.339 inch |
| Height: | 84.6 mm |
| Height (inches): | 3.331 inch |
| Depth: | 30 mm |
| Depth (inches): | 1.181 inch |
| Net weight: | 60 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 65 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...65 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E312083 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 10 A |
| Contact type: | 3 CO contact |
| Rail: | TS 35 |
| Colour: | black |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Protection degree: | IP10 |
| Creepage and clearance distance input – output: | ≥ 6 mm |
| Creepage and clearance distance output – output: | ≥ 5.5 mm |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Standards: | EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
| Certificate No. (cURus): | E312083 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 8 mm |
| Tightening torque, min.: | 0.8 Nm |
| Tightening torque, max.: | 1 Nm |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 2.5 mm² |
| Wire connection: | M4 forked cable lug (insulated) |
| Blade size: | Gr. PH2 |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| ROHS: | Conform |
| Type: | SLD F 3CO |
| Order No.: | 7760056226 |
| Version: | D-SERIES DRL, Relay bases, Number of contacts: 3, CO contact, Continuous current: 10 A, Screw connection |
| GTIN (EAN): | 6944169634024 |
| Qty.: | 10 pc(s). |
| Width: | 34 mm |
| Width (inches): | 1.339 inch |
| Height: | 84.6 mm |
| Height (inches): | 3.331 inch |
| Depth: | 30 mm |
| Depth (inches): | 1.181 inch |
| Net weight: | 60 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 65 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...65 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E312083 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 10 A |
| Contact type: | 3 CO contact |
| Rail: | TS 35 |
| Colour: | black |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Protection degree: | IP10 |
| Creepage and clearance distance input – output: | ≥ 6 mm |
| Creepage and clearance distance output – output: | ≥ 5.5 mm |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Standards: | EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
| Certificate No. (cURus): | E312083 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 8 mm |
| Tightening torque, min.: | 0.8 Nm |
| Tightening torque, max.: | 1 Nm |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 2.5 mm² |
| Wire connection: | M4 forked cable lug (insulated) |
| Blade size: | Gr. PH2 |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.066 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
