Product
Weidmueller
2661340000
IE-FCI-PWB-DK
Request a Quote
Image copyright: Weidmueller

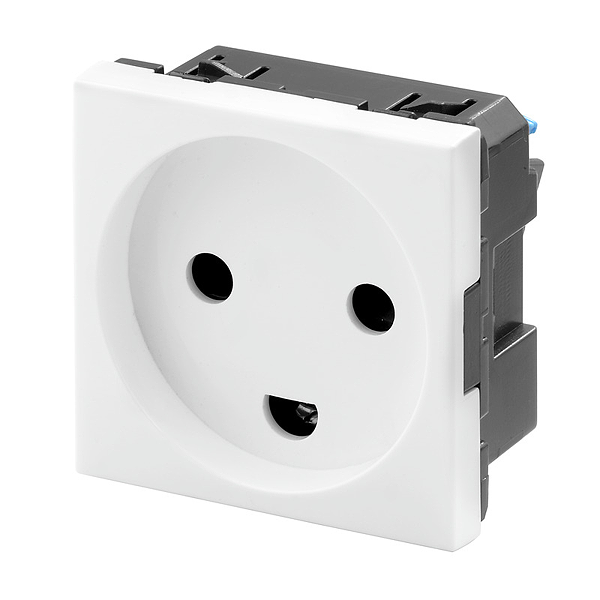

Weidmueller 2661340000
IE-FCI-PWB-DK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-FCI-PWB-DK |
| Order No.: | 2661340000 |
| Version: | FrontCom, Insert Power large, Type K, Socket connector, DK |
| GTIN (EAN): | 4050118675429 |
| Qty.: | 10 pc(s). |
| Net weight: | 28.09 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -5 °C |
| Operating temperature: | -5 °C...40 °C |
| Connector face: | Type K |
| Insert type: | Insert Power large |
| Protection degree: | IP20 |
| Conductor connection cross-section, extremely flexible with wire end ferrule: | 1.5 ... 1.5 mm² |
| Conductor connection cross-section, extremely flexible without wire end ferrule: | 1.5 ... 2.5 mm² |
| Conductor connection cross-section, flexible with wire end ferrule: | 1.5 ... 1.5 mm² |
| Conductor connection cross-section, flexible without wire end ferrule: | 1.5 ... 2.5 mm² |
| Conductor connection cross-section, rigid: | 1.5 ... 2.5 mm² |
| Stripping length: | 13 mm |
| Type of connection: | PUSH IN |
| Housing main material: | Polycarbonate PC |
| Rated current: | 13 A |
| Rated voltage (AC): | 250 V |
| ETIM 6.0: | EC001121 |
| ETIM 7.0: | EC001121 |
| eClass 9.0: | 27-44-03-90 |
| eClass 9.1: | 27-18-90-90 |
| eClass 10.0: | 27-44-03-90 |
| UNSPSC: | 31-16-23-03 |
| Type: | IE-FCI-PWB-DK |
| Order No.: | 2661340000 |
| Version: | FrontCom, Insert Power large, Type K, Socket connector, DK |
| GTIN (EAN): | 4050118675429 |
| Qty.: | 10 pc(s). |
| Net weight: | 28.09 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -5 °C |
| Operating temperature: | -5 °C...40 °C |
| Connector face: | Type K |
| Insert type: | Insert Power large |
| Protection degree: | IP20 |
| Conductor connection cross-section, extremely flexible with wire end ferrule: | 1.5 ... 1.5 mm² |
| Conductor connection cross-section, extremely flexible without wire end ferrule: | 1.5 ... 2.5 mm² |
| Conductor connection cross-section, flexible with wire end ferrule: | 1.5 ... 1.5 mm² |
| Conductor connection cross-section, flexible without wire end ferrule: | 1.5 ... 2.5 mm² |
| Conductor connection cross-section, rigid: | 1.5 ... 2.5 mm² |
| Stripping length: | 13 mm |
| Type of connection: | PUSH IN |
| Housing main material: | Polycarbonate PC |
| Rated current: | 13 A |
| Rated voltage (AC): | 250 V |
| ETIM 6.0: | EC001121 |
| ETIM 7.0: | EC001121 |
| eClass 9.0: | 27-44-03-90 |
| eClass 9.1: | 27-18-90-90 |
| eClass 10.0: | 27-44-03-90 |
| UNSPSC: | 31-16-23-03 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.343 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
