Weidmueller
2656280000
KCMA-RCM-58D
Request a Quote

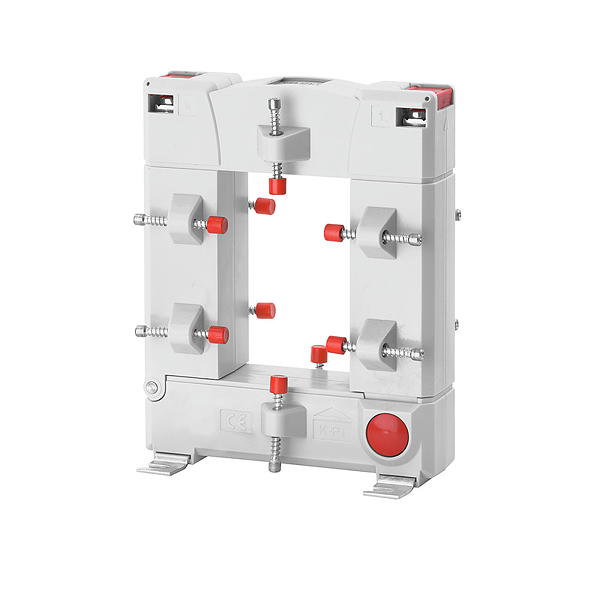

Image copyright: Weidmueller
Weidmueller 2656280000
KCMA-RCM-58D
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | KCMA-RCM-58D |
| Order No.: | 2656280000 |
| Version: | Residual current transformer (RCM), Primary current: 18 A, Round conductor: 50.00 mm, detachable current transformer |
| GTIN (EAN): | 4050118666359 |
| Qty.: | 1 pc(s). |
| Length: | 125 mm |
| Length (inches): | 4.921 inch |
| Width: | 58 mm |
| Width (inches): | 2.283 inch |
| Depth: | 158 mm |
| Depth (inches): | 6.22 inch |
| Net weight: | 240 g |
| Operating temperature, max.: | 45 °C |
| Operating temperature, min.: | -5 °C |
| Operating temperature: | -5 °C...45 °C |
| Installation location: | Indoor use |
| Round conductor: | 50 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Protection degree: | IP20 |
| Primary current: | 18 A |
| Secondary current: | 0....30 mA |
| Secondary current, min.: | 0.03 A |
| Tolerance class: | 1 |
| Standard: | EN 60044⁄1 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
| Type: | KCMA-RCM-58D |
| Order No.: | 2656280000 |
| Version: | Residual current transformer (RCM), Primary current: 18 A, Round conductor: 50.00 mm, detachable current transformer |
| GTIN (EAN): | 4050118666359 |
| Qty.: | 1 pc(s). |
| Length: | 125 mm |
| Length (inches): | 4.921 inch |
| Width: | 58 mm |
| Width (inches): | 2.283 inch |
| Depth: | 158 mm |
| Depth (inches): | 6.22 inch |
| Net weight: | 240 g |
| Operating temperature, max.: | 45 °C |
| Operating temperature, min.: | -5 °C |
| Operating temperature: | -5 °C...45 °C |
| Installation location: | Indoor use |
| Round conductor: | 50 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Protection degree: | IP20 |
| Primary current: | 18 A |
| Secondary current: | 0....30 mA |
| Secondary current, min.: | 0.03 A |
| Tolerance class: | 1 |
| Standard: | EN 60044⁄1 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.24 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
