Product
Weidmueller
2638860000
RJ45G1 R1D 3.3E4GY/GY RL
Request a Quote

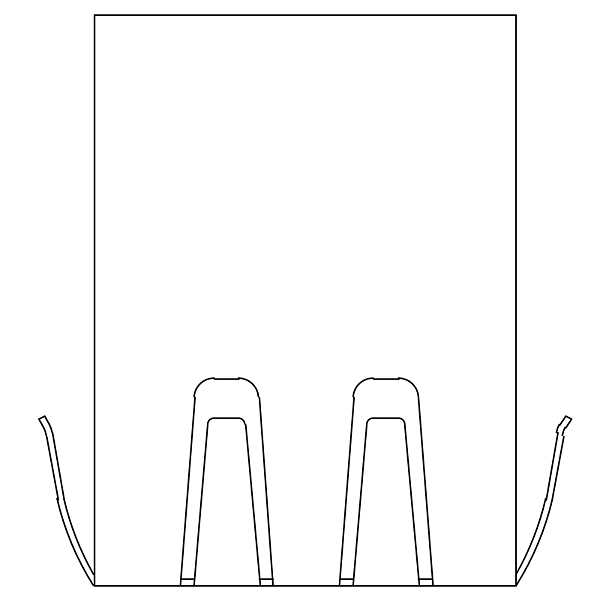

Image copyright: Weidmueller
Weidmueller 2638860000
RJ45G1 R1D 3.3E4GY/GY RL
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RJ45G1 R1D 3.3E4GY/GY RL |
| Order No.: | 2638860000 |
| Version: | PCB plug-in connector, RJ45 jacks transformer, THT/THR solder connection, 90°, Latch option: bottom, Number of poles: 8, Tape |
| GTIN (EAN): | 4050118657098 |
| Qty.: | 200 pc(s). |
| Packaging: | Tape |
| Net weight: | 0.025 g |
| REACH SVHC: | Lead 7439-92-1 |
| Latch option: | bottom |
| Mounting onto the PCB: | THT/THR solder connection |
| Number of poles: | 8 |
| Outgoing elbow: | 90° |
| Pitch in inches (P): | 0.05 inch |
| Pitch in mm (P): | 1.27 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 transformer jack |
| Protection degree: | IP20 |
| Dielectric strength, contact / contact: | 1000 V DC |
| Dielectric strength, contact / shield: | 1500 V DC |
| Insulation strength: | > 500 MΩ |
| Insulation strength: | > 500 MΩ |
| Packaging: | Tape |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
| Type: | RJ45G1 R1D 3.3E4GY/GY RL |
| Order No.: | 2638860000 |
| Version: | PCB plug-in connector, RJ45 jacks transformer, THT/THR solder connection, 90°, Latch option: bottom, Number of poles: 8, Tape |
| GTIN (EAN): | 4050118657098 |
| Qty.: | 200 pc(s). |
| Packaging: | Tape |
| Net weight: | 0.025 g |
| REACH SVHC: | Lead 7439-92-1 |
| Latch option: | bottom |
| Mounting onto the PCB: | THT/THR solder connection |
| Number of poles: | 8 |
| Outgoing elbow: | 90° |
| Pitch in inches (P): | 0.05 inch |
| Pitch in mm (P): | 1.27 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 transformer jack |
| Protection degree: | IP20 |
| Dielectric strength, contact / contact: | 1000 V DC |
| Dielectric strength, contact / shield: | 1500 V DC |
| Insulation strength: | > 500 MΩ |
| Insulation strength: | > 500 MΩ |
| Packaging: | Tape |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.011 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
