Product
Weidmueller
2636810000
RJ45M R1V 3.3N4N TY
Request a Quote
Image copyright: Weidmueller
Weidmueller 2636810000
RJ45M R1V 3.3N4N TY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RJ45M R1V 3.3N4N TY |
| Order No.: | 2636810000 |

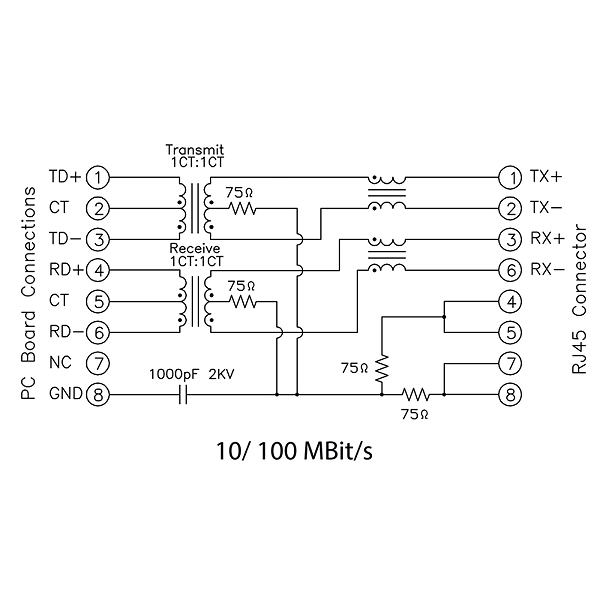

| Version: | PCB plug-in connector, RJ45 jacks transformer, 100 MBit/s , THT/THR solder connection, 180°, LED: No, Number of poles: 8, Tray (manual assembly) |
| GTIN (EAN): | 4050118655834 |
| Qty.: | 120 pc(s). |
| Packaging: | Tray (manual assembly) |
| Width: | 16 mm |
| Width (inches): | 0.63 inch |
| Height: | 17 mm |
| Height (inches): | 0.669 inch |
| Depth: | 16.8 mm |
| Depth (inches): | 0.661 inch |
| Net weight: | 999 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| LED: | No |
| Mounting onto the PCB: | THT/THR solder connection |
| Number of poles: | 8 |
| Outgoing elbow: | 180° |
| Pitch in inches (P): | 0.05 inch |
| Pitch in mm (P): | 1.27 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 transformer jack |
| Protection degree: | IP20 |
| Shielding: | Yes |
| Solder pin length (l): | 3.3 mm |
| Transmission rate: | 100 MBit/s |
| Dielectric strength, contact / contact: | 1000 V DC |
| Dielectric strength, contact / shield: | 1500 V DC |
| Insulation strength: | > 500 MΩ |
| Rated current: | 1.5 A |
| Rated voltage: | 125 V |
| Insulating material: | PA 9T |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulation strength: | > 500 MΩ |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| Contact surface: | Gold over nickel |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Tray (manual assembly) |
| VPE length: | 0 |
| VPE width: | 0 |
| VPE height: | 0 |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| Type: | RJ45M R1V 3.3N4N TY |
| Order No.: | 2636810000 |
| Version: | PCB plug-in connector, RJ45 jacks transformer, 100 MBit/s , THT/THR solder connection, 180°, LED: No, Number of poles: 8, Tray (manual assembly) |
| GTIN (EAN): | 4050118655834 |
| Qty.: | 120 pc(s). |
| Packaging: | Tray (manual assembly) |
| Width: | 16 mm |
| Width (inches): | 0.63 inch |
| Height: | 17 mm |
| Height (inches): | 0.669 inch |
| Depth: | 16.8 mm |
| Depth (inches): | 0.661 inch |
| Net weight: | 999 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| LED: | No |
| Mounting onto the PCB: | THT/THR solder connection |
| Number of poles: | 8 |
| Outgoing elbow: | 180° |
| Pitch in inches (P): | 0.05 inch |
| Pitch in mm (P): | 1.27 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 transformer jack |
| Protection degree: | IP20 |
| Shielding: | Yes |
| Solder pin length (l): | 3.3 mm |
| Transmission rate: | 100 MBit/s |
| Dielectric strength, contact / contact: | 1000 V DC |
| Dielectric strength, contact / shield: | 1500 V DC |
| Insulation strength: | > 500 MΩ |
| Rated current: | 1.5 A |
| Rated voltage: | 125 V |
| Insulating material: | PA 9T |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulation strength: | > 500 MΩ |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| Contact surface: | Gold over nickel |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Tray (manual assembly) |
| VPE length: | 0 |
| VPE width: | 0 |
| VPE height: | 0 |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.999 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
