Product
Weidmueller
2634310000
POWERCRIMPER 6.0
Request a Quote

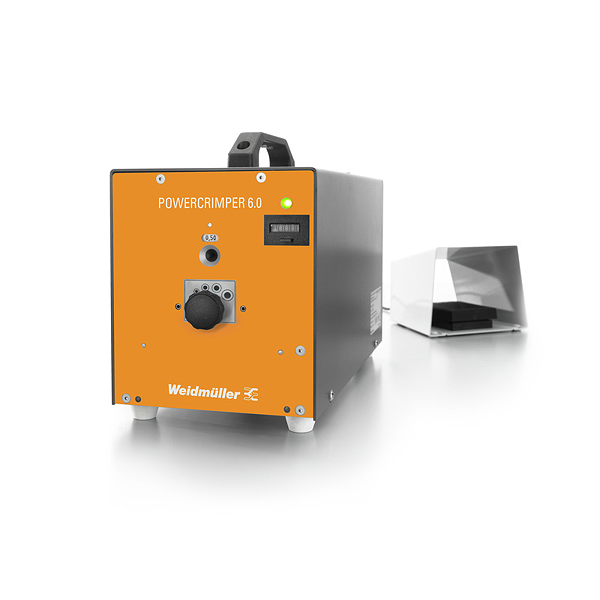

Image copyright: Weidmueller
Weidmueller 2634310000
POWERCRIMPER 6.0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | POWERCRIMPER 6.0 |
| Order No.: | 2634310000 |
| Version: | Automatic machines, Crimping machine |
| GTIN (EAN): | 4050118660906 |
| Qty.: | 1 pc(s). |
| Width: | 165 mm |
| Width (inches): | 6.496 inch |
| Height: | 240 mm |
| Height (inches): | 9.449 inch |
| Depth: | 405 mm |
| Depth (inches): | 15.945 inch |
| Net weight: | 16,130 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Version: | with foot switch |
| Compressed-air connection: | 5.5 bar |
| Consumables: | With and without plastic collar, Twin wire-end ferrules |
| Crimping length: | 6 - 18 mm |
| Crimping range: | 0.5...6 mm² |
| Crimping range, max.: | 6 mm² |
| Crimping range, min.: | 0.5 mm² |
| Drive: | Electropneumatic |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Insertion length: | 13 |
| Note: | Twin wire-end ferrules in the cross-section range from 2 x 0.5 to 2 x 2.5 mm², No need to change tools |
| Pulse time: | approx. 1 s |
| Wire end ferrules cross-section, max.: | 6 mm² |
| Wire end ferrules cross-section, min.: | 0.5 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.1: | 17-31-01-01 |
| eClass 10.0: | 17-13-01-01 |
| ROHS: | Conform |
| Type: | POWERCRIMPER 6.0 |
| Order No.: | 2634310000 |
| Version: | Automatic machines, Crimping machine |
| GTIN (EAN): | 4050118660906 |
| Qty.: | 1 pc(s). |
| Width: | 165 mm |
| Width (inches): | 6.496 inch |
| Height: | 240 mm |
| Height (inches): | 9.449 inch |
| Depth: | 405 mm |
| Depth (inches): | 15.945 inch |
| Net weight: | 16,130 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Version: | with foot switch |
| Compressed-air connection: | 5.5 bar |
| Consumables: | With and without plastic collar, Twin wire-end ferrules |
| Crimping length: | 6 - 18 mm |
| Crimping range: | 0.5...6 mm² |
| Crimping range, max.: | 6 mm² |
| Crimping range, min.: | 0.5 mm² |
| Drive: | Electropneumatic |
| Electrical connection: | 100 - 240 V / 50/60 Hz / 16 VA |
| Insertion length: | 13 |
| Note: | Twin wire-end ferrules in the cross-section range from 2 x 0.5 to 2 x 2.5 mm², No need to change tools |
| Pulse time: | approx. 1 s |
| Wire end ferrules cross-section, max.: | 6 mm² |
| Wire end ferrules cross-section, min.: | 0.5 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.1: | 17-31-01-01 |
| eClass 10.0: | 17-13-01-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 16.13 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
