Product
Weidmueller
2632970000
FP PRO TOP1 24 20 3A
Request a Quote

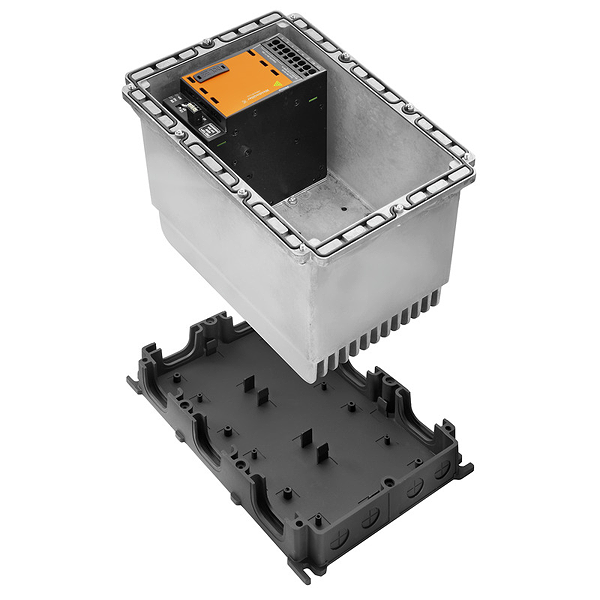

Image copyright: Weidmueller
Weidmueller 2632970000
FP PRO TOP1 24 20 3A
2632970000
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Delivery status: | Discontinued |
| Type: | FP PRO TOP1 24/20 3M |
| Order No.: | 2632970000 |
| GTIN (EAN): | 4050118664461 |
| Qty.: | 1 pc(s). |
| Length: | 196 mm |
| Length (inches): | 7.717 inch |
| Width: | 284 |
| Width (inches): | 11.181 inch |
| Height: | 220 mm |
| Height (inches): | 8.661 inch |
| Net weight: | 0 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Ambient temperature: | -25 °C...+50 °C |
| Halogen: | No |
| Insulating material: | Polycarbonate, GF 10, AL |
| Silicone: | No |
| Colour: | black, Silver grey |
| Lid attachment: | Cross-head screws PZ2 |
| Enclosure attachment: | Fixing lugs |
| Rated input voltage: | 100 - 240 V AC / 120 - 340 V DC |
| Inrush current: | max. 5 A |
| Input fuse (internal): | Yes |
| Rated output voltage: | 24 V DC ± 1 % |
| Nominal output current for Unom: | 20 A @ 60 °C |
| Product information: | Please find the parts list under individual parts. Enclosure seals have to be ordered seperately. You find them under accessories. |
| ETIM 6.0: | EC000214 |
| ETIM 7.0: | EC000214 |
| eClass 9.0: | 27-14-24-09 |
| eClass 9.1: | 27-14-24-09 |
| eClass 10.0: | 27-14-24-09 |
| Type: | PRO TOP1 480W 24V 20A |
| Order No.: | 2466890000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| Delivery status: | Discontinued |
| Type: | FP PRO TOP1 24/20 3M |
| Order No.: | 2632970000 |
| GTIN (EAN): | 4050118664461 |
| Qty.: | 1 pc(s). |
| Length: | 196 mm |
| Length (inches): | 7.717 inch |
| Width: | 284 |
| Width (inches): | 11.181 inch |
| Height: | 220 mm |
| Height (inches): | 8.661 inch |
| Net weight: | 0 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Ambient temperature: | -25 °C...+50 °C |
| Halogen: | No |
| Insulating material: | Polycarbonate, GF 10, AL |
| Silicone: | No |
| Colour: | black, Silver grey |
| Lid attachment: | Cross-head screws PZ2 |
| Enclosure attachment: | Fixing lugs |
| Rated input voltage: | 100 - 240 V AC / 120 - 340 V DC |
| Inrush current: | max. 5 A |
| Input fuse (internal): | Yes |
| Rated output voltage: | 24 V DC ± 1 % |
| Nominal output current for Unom: | 20 A @ 60 °C |
| Product information: | Please find the parts list under individual parts. Enclosure seals have to be ordered seperately. You find them under accessories. |
| ETIM 6.0: | EC000214 |
| ETIM 7.0: | EC000214 |
| eClass 9.0: | 27-14-24-09 |
| eClass 9.1: | 27-14-24-09 |
| eClass 10.0: | 27-14-24-09 |
| Type: | PRO TOP1 480W 24V 20A |
| Order No.: | 2466890000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4050118664461 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
