Product
Weidmueller
2632830000
FP ENC TS 113 3C
Request a Quote
Image copyright: Weidmueller

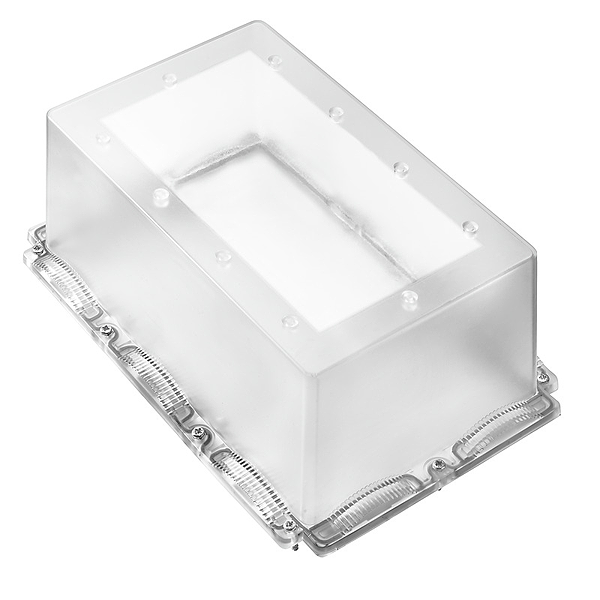

Weidmueller 2632830000
FP ENC TS 113 3C
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | FP ENC TS 113 3C |
| Order No.: | 2632830000 |
| Version: | Enclosures, IP65, in closed state, Polycarbonate |
| GTIN (EAN): | 4050118664522 |
| Qty.: | 1 pc(s). |
| Width: | 279 mm |
| Width (inches): | 10.984 inch |
| Height: | 191 mm |
| Height (inches): | 7.52 inch |
| Depth: | 113 mm |
| Depth (inches): | 4.449 inch |
| Net weight: | 534.7 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...85 °C |
| Storage temperature: | -40 °C...85 °C |
| Halogen: | No |
| Insulating material: | Polycarbonate |
| Protection degree: | IP65, in closed state |
| Silicone: | No |
| Colour: | Transparent |
| UL 94 flammability rating: | 5VA |
| Lid attachment: | Cross-head screws PZ2 |
| Enclosure attachment: | Fixing lugs |
| ETIM 6.0: | EC000214 |
| ETIM 7.0: | EC000214 |
| eClass 9.0: | 27-14-24-09 |
| eClass 9.1: | 27-14-24-09 |
| eClass 10.0: | 27-14-24-09 |
| ROHS: | Conform |
| Type: | FP ENC TS 113 3C |
| Order No.: | 2632830000 |
| Version: | Enclosures, IP65, in closed state, Polycarbonate |
| GTIN (EAN): | 4050118664522 |
| Qty.: | 1 pc(s). |
| Width: | 279 mm |
| Width (inches): | 10.984 inch |
| Height: | 191 mm |
| Height (inches): | 7.52 inch |
| Depth: | 113 mm |
| Depth (inches): | 4.449 inch |
| Net weight: | 534.7 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...85 °C |
| Storage temperature: | -40 °C...85 °C |
| Halogen: | No |
| Insulating material: | Polycarbonate |
| Protection degree: | IP65, in closed state |
| Silicone: | No |
| Colour: | Transparent |
| UL 94 flammability rating: | 5VA |
| Lid attachment: | Cross-head screws PZ2 |
| Enclosure attachment: | Fixing lugs |
| ETIM 6.0: | EC000214 |
| ETIM 7.0: | EC000214 |
| eClass 9.0: | 27-14-24-09 |
| eClass 9.1: | 27-14-24-09 |
| eClass 10.0: | 27-14-24-09 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.788 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
