2626670000

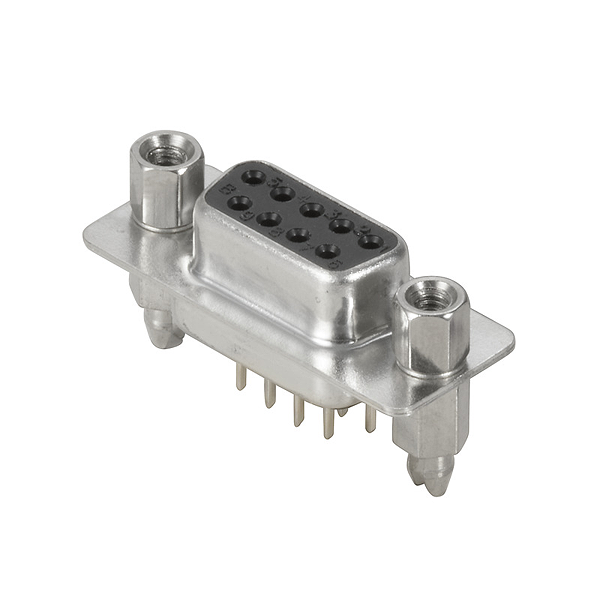

D-SUB F6.1 T09VB 3.2B2 TY BK
Request a Quote
Image copyright: Weidmueller
Weidmueller 2626670000
D-SUB F6.1 T09VB 3.2B2 TY BK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | D-SUB F6.1 T09VB 3.2B2 TY BK |
| Order No.: | 2626670000 |
| Version: | OMNIMATE Data - D-SUB connector, female header, Thread-bolt UNC 4-40, Snap-on clip, THT solder connection, Pitch in mm (P): 2.77 mm, Number of poles: 9, ≥ 50, PBT glass fibre reinforced UL 94 V-0, black, Tray (manual assembly) |
| GTIN (EAN): | 4050118663617 |
| Qty.: | 90 pc(s). |
| Packaging: | Tray (manual assembly) |
| Width: | 30.81 mm |
| Width (inches): | 1.213 inch |
| Depth: | 12.55 mm |
| Depth (inches): | 0.494 inch |
| Net weight: | 8.722 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -55 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -55 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Mounting onto the PCB: | THT solder connection |
| Number of poles: | 9 |
| Outgoing elbow: | 180° |
| Pitch in inches (P): | 0.109 inch |
| Pitch in mm (P): | 2.77 mm |
| Plugging cycles: | ≥ 50 |
| Product family: | OMNIMATE Data - D-SUB connector |
| Protection degree: | IP20 |
| Shield surface: | tinned |
| Shielding material: | Steel |
| Side termination, characteristic: | Thread-bolt UNC 4-40, Snap-on clip |
| Solder eyelet hole diameter (D): | 1.1 mm |
| Solder pin length (l): | 4.6 mm |
| Solder pin length tolerance: | +0,25 / -0,25 mm |
| Type of connection: | Solder connection |
| Dielectric strength, contact / contact: | 1000 V AC |
| Insulation strength: | 1000 MΩ at 500 V DC |
| Rated current: | 3 A |
| Rated voltage: | 250 V |
| Volume resistance: | ≤ 20 mΩ |
| Insulating material: | PBT glass fibre reinforced UL 94 V-0 |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulation strength: | 1000 MΩ at 500 V DC |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Copper alloy |
| Contact surface: | Gold over nickel |
| Layer structure of plug contact: | ≥ 50 µ" Ni / ≥ 1 µ" Au |
| Storage temperature, min.: | -55 °C |
| Storage temperature, max.: | 85 °C |
| Operating temperature, min.: | -55 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Tray (manual assembly) |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
| Type: | D-SUB F6.1 T09VB 3.2B2 TY BK |
| Order No.: | 2626670000 |
| Version: | OMNIMATE Data - D-SUB connector, female header, Thread-bolt UNC 4-40, Snap-on clip, THT solder connection, Pitch in mm (P): 2.77 mm, Number of poles: 9, ≥ 50, PBT glass fibre reinforced UL 94 V-0, black, Tray (manual assembly) |
| GTIN (EAN): | 4050118663617 |
| Qty.: | 90 pc(s). |
| Packaging: | Tray (manual assembly) |
| Width: | 30.81 mm |
| Width (inches): | 1.213 inch |
| Depth: | 12.55 mm |
| Depth (inches): | 0.494 inch |
| Net weight: | 8.722 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -55 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -55 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Mounting onto the PCB: | THT solder connection |
| Number of poles: | 9 |
| Outgoing elbow: | 180° |
| Pitch in inches (P): | 0.109 inch |
| Pitch in mm (P): | 2.77 mm |
| Plugging cycles: | ≥ 50 |
| Product family: | OMNIMATE Data - D-SUB connector |
| Protection degree: | IP20 |
| Shield surface: | tinned |
| Shielding material: | Steel |
| Side termination, characteristic: | Thread-bolt UNC 4-40, Snap-on clip |
| Solder eyelet hole diameter (D): | 1.1 mm |
| Solder pin length (l): | 4.6 mm |
| Solder pin length tolerance: | +0,25 / -0,25 mm |
| Type of connection: | Solder connection |
| Dielectric strength, contact / contact: | 1000 V AC |
| Insulation strength: | 1000 MΩ at 500 V DC |
| Rated current: | 3 A |
| Rated voltage: | 250 V |
| Volume resistance: | ≤ 20 mΩ |
| Insulating material: | PBT glass fibre reinforced UL 94 V-0 |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulation strength: | 1000 MΩ at 500 V DC |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Copper alloy |
| Contact surface: | Gold over nickel |
| Layer structure of plug contact: | ≥ 50 µ" Ni / ≥ 1 µ" Au |
| Storage temperature, min.: | -55 °C |
| Storage temperature, max.: | 85 °C |
| Operating temperature, min.: | -55 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Tray (manual assembly) |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
