Weidmueller
2626090000
RJ45C5 R1U 1.7N4G/Y RL
Request a Quote

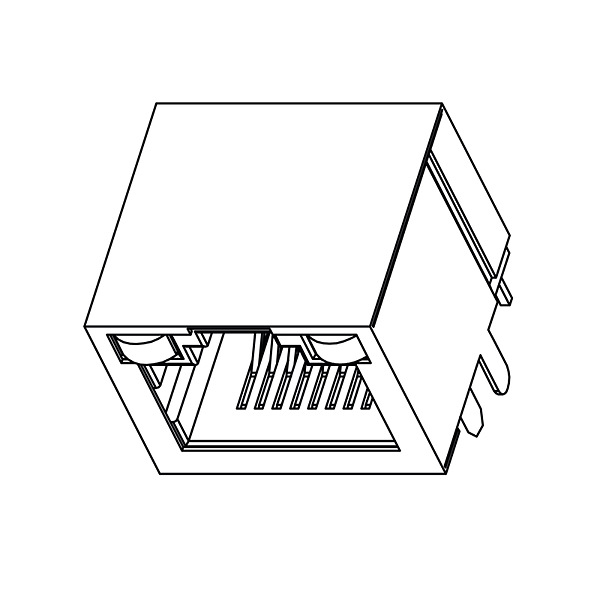

Image copyright: Weidmueller
Weidmueller 2626090000
RJ45C5 R1U 1.7N4G/Y RL
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RJ45C5 R1U 1.7N4G/Y RL |
| Order No.: | 2626090000 |
| Version: | PCB plug-in connector, RJ45 jacks, THT/THR solder connection, 90°, Latch option: top, LED: Yes, green, yellow, Number of poles: 8, Reel |
| GTIN (EAN): | 4050118630183 |
| Qty.: | 240 pc(s). |
| Packaging: | Reel |
| Width: | 16.4 mm |
| Width (inches): | 0.646 inch |
| Height: | 13.1 mm |
| Height (inches): | 0.516 inch |
| Height of lowest version: | 16.5 mm |
| Depth: | 15.7 mm |
| Depth (inches): | 0.618 inch |
| Net weight: | 8.5 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Colour of left LED: | green |
| Colour of right LED: | yellow |
| LED: | Yes |
| Latch option: | top |
| Mounting onto the PCB: | THT/THR solder connection |
| Number of poles: | 8 |
| Outgoing elbow: | 90° |
| Pitch in mm (P): | 1.02 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 modular jack |
| Protection degree: | IP20 |
| Shield surface: | nickel-plated |
| Shielding: | Yes |
| Solder pin length (l): | 1.7 mm |
| Dielectric strength, contact / contact: | 1000 V DC, 1000 V AC |
| Rated current: | 1.5 A |
| Rated voltage: | 125 V |
| Insulating material: | PA 9T |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | II |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Phosphor bronze alloy |
| Contact surface: | Gold over nickel |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Reel |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
| Type: | RJ45C5 R1U 1.7N4G/Y RL |
| Order No.: | 2626090000 |
| Version: | PCB plug-in connector, RJ45 jacks, THT/THR solder connection, 90°, Latch option: top, LED: Yes, green, yellow, Number of poles: 8, Reel |
| GTIN (EAN): | 4050118630183 |
| Qty.: | 240 pc(s). |
| Packaging: | Reel |
| Width: | 16.4 mm |
| Width (inches): | 0.646 inch |
| Height: | 13.1 mm |
| Height (inches): | 0.516 inch |
| Height of lowest version: | 16.5 mm |
| Depth: | 15.7 mm |
| Depth (inches): | 0.618 inch |
| Net weight: | 8.5 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Colour of left LED: | green |
| Colour of right LED: | yellow |
| LED: | Yes |
| Latch option: | top |
| Mounting onto the PCB: | THT/THR solder connection |
| Number of poles: | 8 |
| Outgoing elbow: | 90° |
| Pitch in mm (P): | 1.02 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 modular jack |
| Protection degree: | IP20 |
| Shield surface: | nickel-plated |
| Shielding: | Yes |
| Solder pin length (l): | 1.7 mm |
| Dielectric strength, contact / contact: | 1000 V DC, 1000 V AC |
| Rated current: | 1.5 A |
| Rated voltage: | 125 V |
| Insulating material: | PA 9T |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | II |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Phosphor bronze alloy |
| Contact surface: | Gold over nickel |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Reel |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.009 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
