Product
Weidmueller
2623930000
FB 16-50
Request a Quote

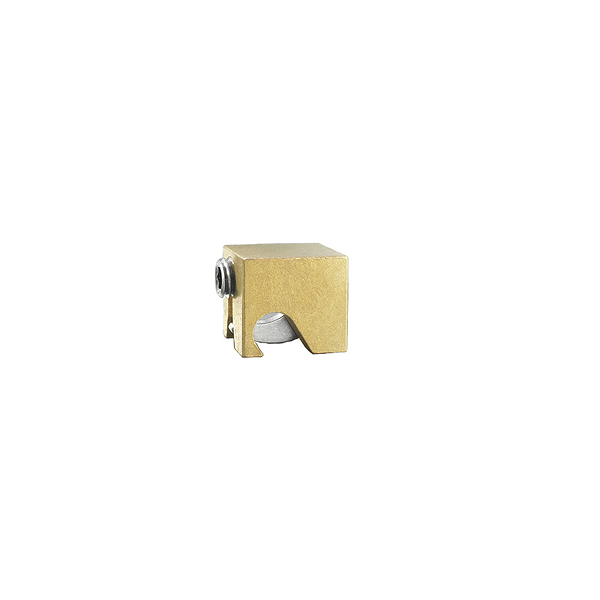

Image copyright: Weidmueller
Weidmueller 2623930000
FB 16-50
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | FB 16-50 |
| Order No.: | 2623930000 |
| Version: | WPAK, Potential equalisation block, Rated cross-section: Screw connection, Direct mounting |
| GTIN (EAN): | 4050118627435 |
| Qty.: | 15 pc(s). |
| Width: | 20 mm |
| Width (inches): | 0.787 inch |
| Height: | 22.5 mm |
| Height (inches): | 0.886 inch |
| Depth: | 24 mm |
| Depth (inches): | 0.945 inch |
| Net weight: | 72.628 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Ambient temperature: | -40°C bis +75°C |
| Storage temperature: | 10 °C...40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Brass |
| Colour: | Brass coloured |
| Installation advice: | Direct mounting |
| Type of mounting: | when screwed in |
| Clamping range, max.: | 50 mm² |
| Clamping range, min.: | 16 mm² |
| Clamping screw: | M 6 |
| Connection direction: | on side |
| Number of connections: | 1 |
| Stripping length: | 33 mm |
| Tightening torque, min.: | 5 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 50 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| Type: | FB 16-50 |
| Order No.: | 2623930000 |
| Version: | WPAK, Potential equalisation block, Rated cross-section: Screw connection, Direct mounting |
| GTIN (EAN): | 4050118627435 |
| Qty.: | 15 pc(s). |
| Width: | 20 mm |
| Width (inches): | 0.787 inch |
| Height: | 22.5 mm |
| Height (inches): | 0.886 inch |
| Depth: | 24 mm |
| Depth (inches): | 0.945 inch |
| Net weight: | 72.628 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Ambient temperature: | -40°C bis +75°C |
| Storage temperature: | 10 °C...40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Brass |
| Colour: | Brass coloured |
| Installation advice: | Direct mounting |
| Type of mounting: | when screwed in |
| Clamping range, max.: | 50 mm² |
| Clamping range, min.: | 16 mm² |
| Clamping screw: | M 6 |
| Connection direction: | on side |
| Number of connections: | 1 |
| Stripping length: | 33 mm |
| Tightening torque, min.: | 5 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 50 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.075 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
