Product
Weidmueller
2623910000
AAP13 6 LO-LO OR
Request a Quote

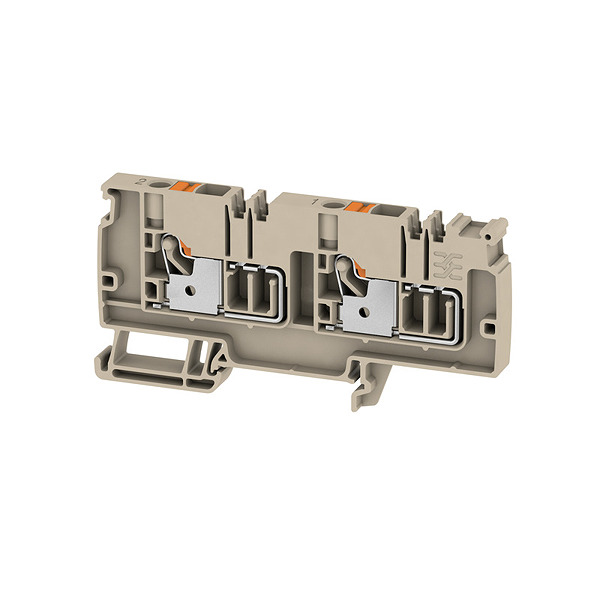

Image copyright: Weidmueller
Weidmueller 2623910000
AAP13 6 LO-LO OR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | AAP13 6 LO-LO OR |
| Order No.: | 2623910000 |
| Version: | 6 mm², 250, 41 A, orange |
| GTIN (EAN): | 4050118627459 |
| Qty.: | 20 pc(s). |
| Net weight: | 22.31 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | TUEV17ATEX8030U |
| Certificate No. (IECEX): | IECEXTUR17.0015U |
| Max. voltage (ATEX): | 220 V |
| Current (ATEX): | 33 A |
| Wire cross section max. (ATEX): | 6 mm² |
| Max. voltage (IECEX): | 220 V |
| Current (IECEX): | 33 A |
| Wire cross section max. (IECEX): | 6 mm² |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.34 mm² |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 250 |
| Rated voltage to adjoining terminal: | 250 V |
| Rated current: | 41 A |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| Type: | AAP13 6 LO-LO OR |
| Order No.: | 2623910000 |
| Version: | 6 mm², 250, 41 A, orange |
| GTIN (EAN): | 4050118627459 |
| Qty.: | 20 pc(s). |
| Net weight: | 22.31 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | TUEV17ATEX8030U |
| Certificate No. (IECEX): | IECEXTUR17.0015U |
| Max. voltage (ATEX): | 220 V |
| Current (ATEX): | 33 A |
| Wire cross section max. (ATEX): | 6 mm² |
| Max. voltage (IECEX): | 220 V |
| Current (IECEX): | 33 A |
| Wire cross section max. (IECEX): | 6 mm² |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.34 mm² |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 250 |
| Rated voltage to adjoining terminal: | 250 V |
| Rated current: | 41 A |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.024 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
