Product
Weidmueller
2615930000
KCMA-50E-1000-5-05VA-05
Request a Quote
Image copyright: Weidmueller

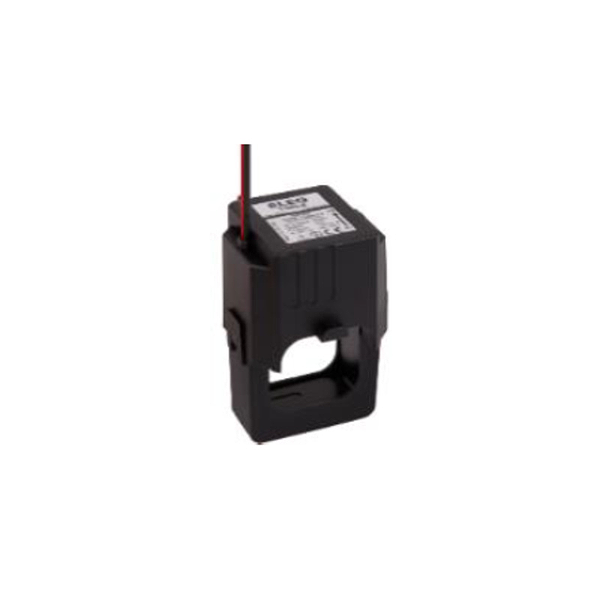

Weidmueller 2615930000
KCMA-50E-1000-5-05VA-05
Primary current: 1000 A, Secondary current max.: 5 A, Load: 0.5 VA, Tolerance class: 0,5, detachable current transformer
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | KCMA-50E-1000-5-05VA-05 |
| Order No.: | 2615930000 |
| Version: | Primary current: 1000 A, Secondary current max.: 5 A, Load: 0.5 VA, Tolerance class: 0,5, detachable current transformer |
| GTIN (EAN): | 4050118649659 |
| Qty.: | 1 pc(s). |
| Net weight: | 612 g |
| Installation location: | Indoor use |
| Round conductor: | 42 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Cable length: | 3 m |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Protection degree: | IP20 |
| Load: | 0.5 VA |
| Primary current: | 1,000 A |
| Secondary current: | 5 A |
| Secondary current max.: | 5 A |
| Tolerance class: | 0,5 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
| Type: | KCMA-50E-1000-5-05VA-05 |
| Order No.: | 2615930000 |
| Version: | Primary current: 1000 A, Secondary current max.: 5 A, Load: 0.5 VA, Tolerance class: 0,5, detachable current transformer |
| GTIN (EAN): | 4050118649659 |
| Qty.: | 1 pc(s). |
| Net weight: | 612 g |
| Installation location: | Indoor use |
| Round conductor: | 42 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Cable length: | 3 m |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Protection degree: | IP20 |
| Load: | 0.5 VA |
| Primary current: | 1,000 A |
| Secondary current: | 5 A |
| Secondary current max.: | 5 A |
| Tolerance class: | 0,5 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
