Product
Weidmueller
2615860000
KCMA-40C-400-1-02VA-1
Request a Quote
Image copyright: Weidmueller
Weidmueller 2615860000
KCMA-40C-400-1-02VA-1

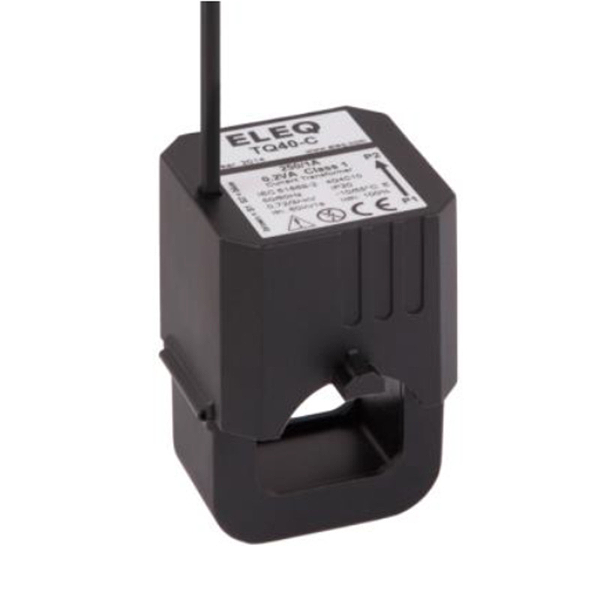

Primary current: 400 A, Secondary current max.: 1 A, Load: 0.2 VA, Tolerance class: 1, detachable current transformer
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | KCMA-40C-400-1-02VA-1 |
| Order No.: | 2615860000 |
| Version: | Primary current: 400 A, Secondary current max.: 1 A, Load: 0.2 VA, Tolerance class: 1, detachable current transformer |
| GTIN (EAN): | 4050118649543 |
| Qty.: | 1 pc(s). |
| Net weight: | 338 g |
| Installation location: | Indoor use |
| Round conductor: | 28 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Cable length: | 3 m |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Protection degree: | IP20 |
| Load: | 0.2 VA |
| Primary current: | 400 A |
| Secondary current: | 1 A |
| Secondary current max.: | 1 A |
| Tolerance class: | 1 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
| Type: | KCMA-40C-400-1-02VA-1 |
| Order No.: | 2615860000 |
| Version: | Primary current: 400 A, Secondary current max.: 1 A, Load: 0.2 VA, Tolerance class: 1, detachable current transformer |
| GTIN (EAN): | 4050118649543 |
| Qty.: | 1 pc(s). |
| Net weight: | 338 g |
| Installation location: | Indoor use |
| Round conductor: | 28 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Cable length: | 3 m |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Protection degree: | IP20 |
| Load: | 0.2 VA |
| Primary current: | 400 A |
| Secondary current: | 1 A |
| Secondary current max.: | 1 A |
| Tolerance class: | 1 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
