Weidmueller
2584980000
IE-PS-RJ45-TH-BK-P
Request a Quote

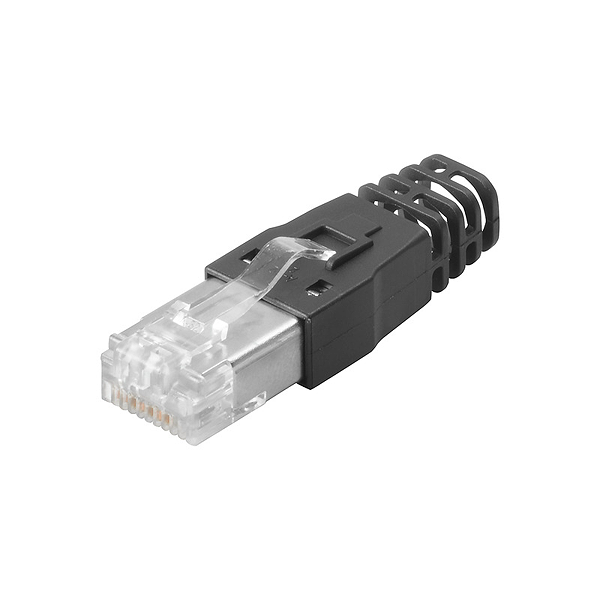

Image copyright: Weidmueller
Weidmueller 2584980000
IE-PS-RJ45-TH-BK-P
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-PS-RJ45-TH-BK-P |
| Order No.: | 2584980000 |
| GTIN (EAN): | 4050118593556 |
| Qty.: | 10 pc(s). |
| Net weight: | 4.5 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection 1: | Crimp |
| Connection 2: | RJ45 |
| Description of article: | with kink protection; 6.5 - 7.5 mm |
| Wiring: | PROFINET |
| Colour: | Miscellaneous |
| Housing main material: | Polycarbonate PC, UL 94: V-0 |
| Insulation cross-section, min.: | 1.3 mm |
| Insulation cross-section, max.: | 1.6 mm |
| Contact material: | Copper alloy |
| Contact surface: | nickel-plated, selectively gold-plated |
| Conductor connection cross-section, solid (AWG): | AWG 22/1 |
| Wire cross-section, solid, max.: | 0.324 mm² |
| Conductor connection cross-section, solid: | ...0.32 mm² |
| Conductor connection cross-section, flexible (AWG): | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 0.355 mm² |
| Conductor connection cross-section, flexible: | ...0.35 mm² |
| Sheath diameter, max.: | 7.5 mm |
| Bending protection sleeve material: | Polyamide PA6, UL 94-V0 |
| Shielding: | 360° all-round enclosure |
| Protection degree: | IP20 |
| Plugging cycles: | 750 |
| Contact resistance: | ≤ 10 mΩ |
| Dielectric strength, contact / contact: | 1000 V AC |
| Insulation strength: | 500 MΩ |
| PoE / PoE+: | conforming to IEEE 802.3af |
| Rated current: | 1.5 A |
| Rated voltage: | 150 V AC |
| Connector standard: | IEC 60603-7 |
| ETIM 6.0: | EC001121 |
| ETIM 7.0: | EC001121 |
| eClass 9.0: | 27-44-03-90 |
| eClass 9.1: | 27-44-03-90 |
| eClass 10.0: | 27-44-03-90 |
| ROHS: | Conform |
| Type: | IE-PS-RJ45-TH-BK-P |
| Order No.: | 2584980000 |
| GTIN (EAN): | 4050118593556 |
| Qty.: | 10 pc(s). |
| Net weight: | 4.5 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Connection 1: | Crimp |
| Connection 2: | RJ45 |
| Description of article: | with kink protection; 6.5 - 7.5 mm |
| Wiring: | PROFINET |
| Colour: | Miscellaneous |
| Housing main material: | Polycarbonate PC, UL 94: V-0 |
| Insulation cross-section, min.: | 1.3 mm |
| Insulation cross-section, max.: | 1.6 mm |
| Contact material: | Copper alloy |
| Contact surface: | nickel-plated, selectively gold-plated |
| Conductor connection cross-section, solid (AWG): | AWG 22/1 |
| Wire cross-section, solid, max.: | 0.324 mm² |
| Conductor connection cross-section, solid: | ...0.32 mm² |
| Conductor connection cross-section, flexible (AWG): | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 0.355 mm² |
| Conductor connection cross-section, flexible: | ...0.35 mm² |
| Sheath diameter, max.: | 7.5 mm |
| Bending protection sleeve material: | Polyamide PA6, UL 94-V0 |
| Shielding: | 360° all-round enclosure |
| Protection degree: | IP20 |
| Plugging cycles: | 750 |
| Contact resistance: | ≤ 10 mΩ |
| Dielectric strength, contact / contact: | 1000 V AC |
| Insulation strength: | 500 MΩ |
| PoE / PoE+: | conforming to IEEE 802.3af |
| Rated current: | 1.5 A |
| Rated voltage: | 150 V AC |
| Connector standard: | IEC 60603-7 |
| ETIM 6.0: | EC001121 |
| ETIM 7.0: | EC001121 |
| eClass 9.0: | 27-44-03-90 |
| eClass 9.1: | 27-44-03-90 |
| eClass 10.0: | 27-44-03-90 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.005 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
