Product
Weidmueller
2581810000
IE-CDR-V14MRJ/VAPM-C
Request a Quote

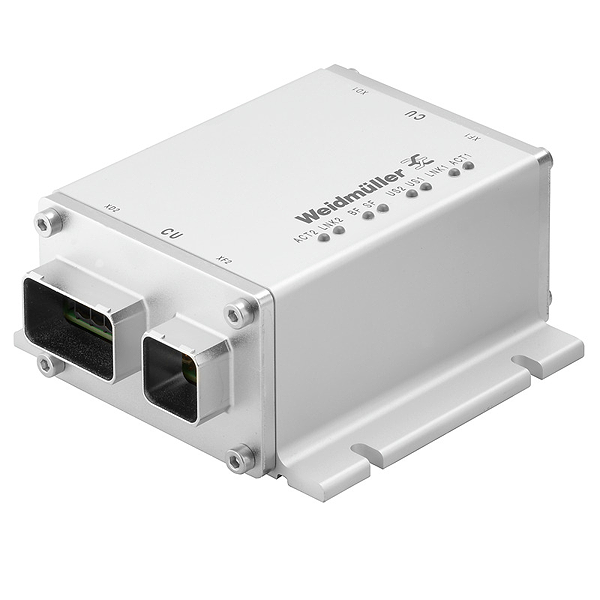

Image copyright: Weidmueller
Weidmueller 2581810000
IE-CDR-V14MRJ/VAPM-C
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-CDR-V14MRJ/VAPM-C |
| Order No.: | 2581810000 |
| Version: | PROFINET copper repeater, FreeCon, IP65 |
| GTIN (EAN): | 4050118590869 |
| Qty.: | 1 pc(s). |
| Net weight: | 661.8 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -20 °C |
| Operating temperature: | -20 °C...55 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Data interface: | PROFINET PushPull RJ45 (V14) |
| Housing main material: | Aluminium profile, Zinc die cast, electroplated lid |
| Power interface: | PROFINET PushPull Power |
| Protection degree: | IP65 |
| Baud rate: | 100 MBit/s |
| Current consumption: | 100 mA |
| LED indicator: | ACT1: activity Port1, ACT2: activity Port2, SF: general error, BF: bus error, US1: voltage 1 (electronics), US2: voltage 2, LNK1: port active, LNK2: port active |
| Operating voltage: | 24 V DC |
| Operational voltage range: | 18…30 V DC |
| Protocol: | PROFINET IRT |
| Certificate no. (cULus): | E141197 |
| Connector standard: | IEC 61076-3-117 Var. 14 |
| Network standard: | IEC 61158, IEC 61784 |
| PROFINET specification: | Conformance Class C acc. V2.3 |
| ETIM 6.0: | EC000732 |
| ETIM 7.0: | EC000732 |
| eClass 9.0: | 19-17-02-06 |
| eClass 9.1: | 19-17-01-25 |
| eClass 10.0: | 19-17-02-06 |
| Type: | IE-CDR-V14MRJ/VAPM-C |
| Order No.: | 2581810000 |
| Version: | PROFINET copper repeater, FreeCon, IP65 |
| GTIN (EAN): | 4050118590869 |
| Qty.: | 1 pc(s). |
| Net weight: | 661.8 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -20 °C |
| Operating temperature: | -20 °C...55 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Data interface: | PROFINET PushPull RJ45 (V14) |
| Housing main material: | Aluminium profile, Zinc die cast, electroplated lid |
| Power interface: | PROFINET PushPull Power |
| Protection degree: | IP65 |
| Baud rate: | 100 MBit/s |
| Current consumption: | 100 mA |
| LED indicator: | ACT1: activity Port1, ACT2: activity Port2, SF: general error, BF: bus error, US1: voltage 1 (electronics), US2: voltage 2, LNK1: port active, LNK2: port active |
| Operating voltage: | 24 V DC |
| Operational voltage range: | 18…30 V DC |
| Protocol: | PROFINET IRT |
| Certificate no. (cULus): | E141197 |
| Connector standard: | IEC 61076-3-117 Var. 14 |
| Network standard: | IEC 61158, IEC 61784 |
| PROFINET specification: | Conformance Class C acc. V2.3 |
| ETIM 6.0: | EC000732 |
| ETIM 7.0: | EC000732 |
| eClass 9.0: | 19-17-02-06 |
| eClass 9.1: | 19-17-01-25 |
| eClass 10.0: | 19-17-02-06 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.794 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
