2580240000
PRO INSTA 60W 12V 5A
Request a Quote
Image copyright: Weidmueller

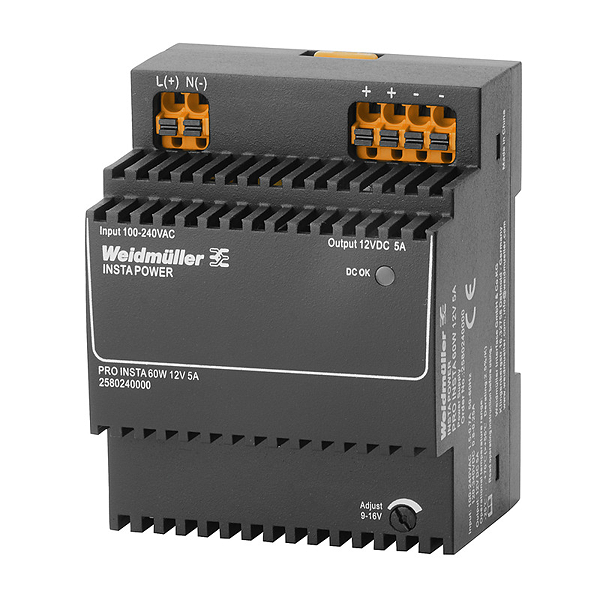

Weidmueller 2580240000
PRO INSTA 60W 12V 5A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PRO INSTA 60W 12V 5A |
| Order No.: | 2580240000 |
| Version: | Power supply, switch-mode power supply unit |
| GTIN (EAN): | 4050118590975 |
| Qty.: | 1 pc(s). |
| Width: | 72 mm |
| Width (inches): | 2.835 inch |
| Height: | 90 mm |
| Height (inches): | 3.543 inch |
| Depth: | 60 mm |
| Depth (inches): | 2.362 inch |
| Net weight: | 258 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| AC current consumption: | 0.7 A @ 230 V AC / 1.5 A @ 100 V AC |
| AC input voltage range: | 85...264 V AC (derating at 100 V AC) |
| Connection system: | PUSH IN |
| DC current consumption: | 0.25 A @ 370 V DC / 0.8 A @ 120 V DC |
| DC input voltage range: | 95…370 V DC |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 40 A |
| Rated input voltage: | 100 - 240 V AC / 120 - 340 V DC |
| Capacitive load: | unrestricted |
| Connection system: | PUSH IN |
| Continous output current @ UNominal: | 5 A @ 55 °C, 3.75 A @ 70 °C |
| Nominal output current for Unom: | 5 A @ 55 °C |
| Output voltage: | 16...9 V (adjustable via potentiometer on front) |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 12 V DC ± 1 % |
| Degree of efficiency: | 86% |
| Housing version: | Plastic, protective insulation |
| MTBF: | > 750.000 h nach IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Operating temperature: | -25 °C...70 °C |
| Power loss, idling: | 0.42 W |
| Power loss, nominal load: | 8.4 W |
| Protection against reverse voltages from the load: | 18…25 V DC |
| Protection degree: | IP20 |
| Limiting of mains voltage harmonic currents: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips) |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Insulation voltage input / earth: | 3.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 4 kV |
| Pollution severity: | 2 |
| Protection class: | II |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , min.: | 0.25 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.25 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 2 (L,N) |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.25 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.25 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (++ / --) |
| LED green: | Operating voltage OK |
| Certificate No. (CSA): | 70211209 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO INSTA 60W 12V 5A |
| Order No.: | 2580240000 |
| Version: | Power supply, switch-mode power supply unit |
| GTIN (EAN): | 4050118590975 |
| Qty.: | 1 pc(s). |
| Width: | 72 mm |
| Width (inches): | 2.835 inch |
| Height: | 90 mm |
| Height (inches): | 3.543 inch |
| Depth: | 60 mm |
| Depth (inches): | 2.362 inch |
| Net weight: | 258 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| AC current consumption: | 0.7 A @ 230 V AC / 1.5 A @ 100 V AC |
| AC input voltage range: | 85...264 V AC (derating at 100 V AC) |
| Connection system: | PUSH IN |
| DC current consumption: | 0.25 A @ 370 V DC / 0.8 A @ 120 V DC |
| DC input voltage range: | 95…370 V DC |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | Yes |
| Inrush current: | max. 40 A |
| Rated input voltage: | 100 - 240 V AC / 120 - 340 V DC |
| Capacitive load: | unrestricted |
| Connection system: | PUSH IN |
| Continous output current @ UNominal: | 5 A @ 55 °C, 3.75 A @ 70 °C |
| Nominal output current for Unom: | 5 A @ 55 °C |
| Output voltage: | 16...9 V (adjustable via potentiometer on front) |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 12 V DC ± 1 % |
| Degree of efficiency: | 86% |
| Housing version: | Plastic, protective insulation |
| MTBF: | > 750.000 h nach IEC 61709 (SN29500) |
| Mounting position, installation notice: | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Operating temperature: | -25 °C...70 °C |
| Power loss, idling: | 0.42 W |
| Power loss, nominal load: | 8.4 W |
| Protection against reverse voltages from the load: | 18…25 V DC |
| Protection degree: | IP20 |
| Limiting of mains voltage harmonic currents: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips) |
| Noise emission in accordance with EN55032: | Class B |
| Vibration resistance IEC 60068-2-6: | 2.3 g |
| Interference immunity test acc. to: | EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips) |
| Shock resistance IEC 60068-2-27: | 15 g In all directions |
| Insulation voltage input / earth: | 3.5 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 4 kV |
| Pollution severity: | 2 |
| Protection class: | II |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , min.: | 0.25 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.25 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 2 (L,N) |
| Wire connection cross section, flexible (input), max.: | 2.5 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 12 |
| Conductor cross-section, AWG/kcmil , min.: | 24 |
| Conductor cross-section, flexible , max.: | 2.5 mm² |
| Conductor cross-section, flexible , min.: | 0.25 mm² |
| Conductor cross-section, rigid , max.: | 2.5 mm² |
| Conductor cross-section, rigid , min.: | 0.25 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (++ / --) |
| LED green: | Operating voltage OK |
| Certificate No. (CSA): | 70211209 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
