Product
Weidmueller
2579580000
AIO21 1.5 SO-PE OR
Request a Quote

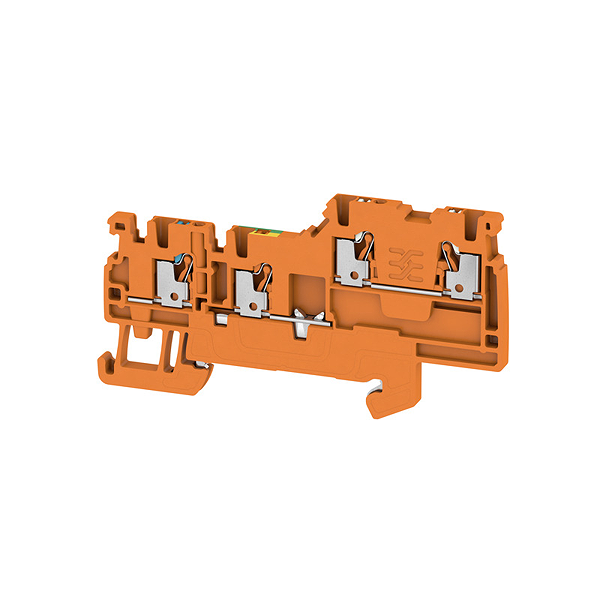

Image copyright: Weidmueller
Weidmueller 2579580000
AIO21 1.5 SO-PE OR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | AIO21 1.5 SO-PE OR |
| Order No.: | 2579580000 |
| Version: | PUSH IN, 1.5 mm², 250 V, 13.5 A, orange |
| GTIN (EAN): | 4050118588606 |
| Qty.: | 100 pc(s). |
| Width: | 3.5 mm |
| Width (inches): | 0.138 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 42 mm |
| Depth (inches): | 1.654 inch |
| Depth including DIN rail: | 43 mm |
| Net weight: | 9.559 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | TUEV17ATEX8031U |
| Certificate No. (IECEX): | IECEXTUR17.0016U |
| Max. voltage (ATEX): | 220 V |
| Current (ATEX): | 12 A |
| Wire cross section max. (ATEX): | 1.5 mm² |
| Max. voltage (IECEX): | 220 V |
| Current (IECEX): | 12 A |
| Wire cross section max. (IECEX): | 1.5 mm² |
| Blade size: | 0.4 x 2.0 mm |
| Clamping range, max.: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Connection cross-section, stranded, max.: | 1.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A1 |
| Number of connections: | 4 |
| Stripping length: | 8 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 1.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 13.5 A |
| Current at maximum wires: | 13.5 A |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| ETIM 6.0: | EC000900 |
| ETIM 7.0: | EC000900 |
| eClass 9.0: | 27-14-11-28 |
| eClass 9.1: | 27-14-11-28 |
| eClass 10.0: | 27-14-11-28 |
| Type: | AIO21 1.5 SO-PE OR |
| Order No.: | 2579580000 |
| Version: | PUSH IN, 1.5 mm², 250 V, 13.5 A, orange |
| GTIN (EAN): | 4050118588606 |
| Qty.: | 100 pc(s). |
| Width: | 3.5 mm |
| Width (inches): | 0.138 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 42 mm |
| Depth (inches): | 1.654 inch |
| Depth including DIN rail: | 43 mm |
| Net weight: | 9.559 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | TUEV17ATEX8031U |
| Certificate No. (IECEX): | IECEXTUR17.0016U |
| Max. voltage (ATEX): | 220 V |
| Current (ATEX): | 12 A |
| Wire cross section max. (ATEX): | 1.5 mm² |
| Max. voltage (IECEX): | 220 V |
| Current (IECEX): | 12 A |
| Wire cross section max. (IECEX): | 1.5 mm² |
| Blade size: | 0.4 x 2.0 mm |
| Clamping range, max.: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Connection cross-section, stranded, max.: | 1.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A1 |
| Number of connections: | 4 |
| Stripping length: | 8 mm |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 1.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 13.5 A |
| Current at maximum wires: | 13.5 A |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| ETIM 6.0: | EC000900 |
| ETIM 7.0: | EC000900 |
| eClass 9.0: | 27-14-11-28 |
| eClass 9.1: | 27-14-11-28 |
| eClass 10.0: | 27-14-11-28 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
