Product
Weidmueller
2564450000
RJ45M S1D DE4N RL
Request a Quote
Image copyright: Weidmueller
Weidmueller 2564450000
RJ45M S1D DE4N RL
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | RJ45M S1D DE4N RL |
| Order No.: | 2564450000 |
| Version: | PCB plug-in connector, RJ45 jacks transformer, 10/100 MBit/s , SMD solder connection, 90°, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tape |
| GTIN (EAN): | 4050118572940 |
| Qty.: | 220 pc(s). |
| Packaging: | Tape |

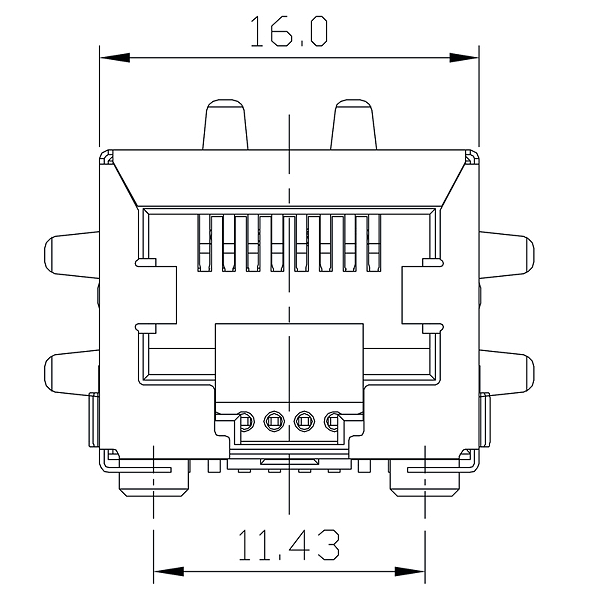

| Width: | 16 mm |
| Width (inches): | 0.63 inch |
| Height: | 13.46 mm |
| Height (inches): | 0.53 inch |
| Height of lowest version: | 12.86 mm |
| Depth: | 21.55 mm |
| Depth (inches): | 0.848 inch |
| Net weight: | 0.001 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| LED: | No |
| Mounting onto the PCB: | SMD solder connection |
| Number of poles: | 8 |
| Number of solder pins per pole: | 1 |
| Outgoing elbow: | 90° |
| Pitch in inches (P): | 0.05 inch |
| Pitch in mm (P): | 1.27 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 transformer jack |
| Shield surface: | nickel-plated |
| Shield tabs: | 6 tabs |
| Shielding: | Yes |
| Shielding material: | Brass |
| Transmission rate: | 10/100 MBit/s |
| Type of connection: | Socket connector |
| Dielectric strength, contact / contact: | 1000 V DC |
| Dielectric strength, contact / shield: | 1500 V DC |
| Insulation strength: | > 500 MΩ |
| Rated current: | 1.5 A |
| Rated voltage: | 125 V AC |
| Insulating material: | PA 9T |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | II |
| Comparative Tracking Index (CTI): | ≥ 500 |
| Insulation strength: | > 500 MΩ |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Phosphorus bronze |
| Contact surface: | Gold over nickel |
| Layer structure of plug contact: | 30...80 µ" Ni / ≥ 30 µ" Au |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Tape |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| Tape reel diameter ∅ (A): | 330 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
| Type: | RJ45M S1D DE4N RL |
| Order No.: | 2564450000 |
| Version: | PCB plug-in connector, RJ45 jacks transformer, 10/100 MBit/s , SMD solder connection, 90°, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tape |
| GTIN (EAN): | 4050118572940 |
| Qty.: | 220 pc(s). |
| Packaging: | Tape |
| Width: | 16 mm |
| Width (inches): | 0.63 inch |
| Height: | 13.46 mm |
| Height (inches): | 0.53 inch |
| Height of lowest version: | 12.86 mm |
| Depth: | 21.55 mm |
| Depth (inches): | 0.848 inch |
| Net weight: | 0.001 g |
| Operating temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| REACH SVHC: | Lead 7439-92-1 |
| LED: | No |
| Mounting onto the PCB: | SMD solder connection |
| Number of poles: | 8 |
| Number of solder pins per pole: | 1 |
| Outgoing elbow: | 90° |
| Pitch in inches (P): | 0.05 inch |
| Pitch in mm (P): | 1.27 mm |
| Plugging cycles: | 750 |
| Product family: | OMNIMATE Data - RJ45 transformer jack |
| Shield surface: | nickel-plated |
| Shield tabs: | 6 tabs |
| Shielding: | Yes |
| Shielding material: | Brass |
| Transmission rate: | 10/100 MBit/s |
| Type of connection: | Socket connector |
| Dielectric strength, contact / contact: | 1000 V DC |
| Dielectric strength, contact / shield: | 1500 V DC |
| Insulation strength: | > 500 MΩ |
| Rated current: | 1.5 A |
| Rated voltage: | 125 V AC |
| Insulating material: | PA 9T |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | II |
| Comparative Tracking Index (CTI): | ≥ 500 |
| Insulation strength: | > 500 MΩ |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| Contact base material: | Phosphorus bronze |
| Contact surface: | Gold over nickel |
| Layer structure of plug contact: | 30...80 µ" Ni / ≥ 30 µ" Au |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 85 °C |
| Packaging: | Tape |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| Tape reel diameter ∅ (A): | 330 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
