Weidmueller
2556470000
TCC 6.4/2 BK
Request a Quote

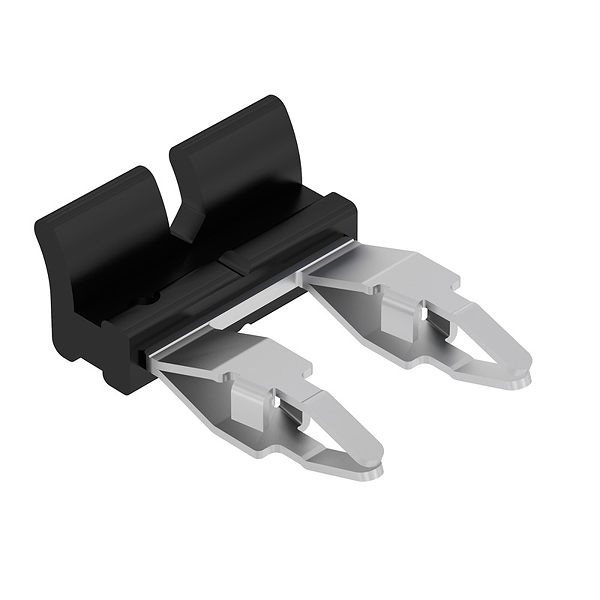

Image copyright: Weidmueller
Weidmueller 2556470000
TCC 6.4/2 BK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | TCC 6.4/2 BK |
| Order No.: | 2556470000 |
| Version: | TERMSERIES, Cross-connector |
| GTIN (EAN): | 4050118566987 |
| Qty.: | 10 pc(s). |
| Width: | 9.8 mm |
| Width (inches): | 0.386 inch |
| Height: | 13.1 mm |
| Height (inches): | 0.516 inch |
| Depth: | 4.8 mm |
| Depth (inches): | 0.189 inch |
| Net weight: | 0.4 g |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...85 °C |
| Rated voltage: | 300 V |
| Rated current: | 17.5 A |
| Insulation: | Yes |
| Touch-safe protection: | Yes |
| Colour: | black |
| Number of cross-connected terminals: | 2 |
| Number of poles: | 2 |
| Pitch in mm (P): | 6.4 mm |
| Type of mounting: | Plugged |
| Version: | cannot be cut to length |
| Rated current (UL): | 10 A |
| Version: | cannot be cut to length |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pitch in mm (P): | 6.4 mm |
| ETIM 6.0: | EC002586 |
| ETIM 7.0: | EC002586 |
| eClass 9.1: | 27-37-16-92 |
| eClass 10.0: | 27-37-16-92 |
| ROHS: | Conform |
| Type: | TCC 6.4/2 BK |
| Order No.: | 2556470000 |
| Version: | TERMSERIES, Cross-connector |
| GTIN (EAN): | 4050118566987 |
| Qty.: | 10 pc(s). |
| Width: | 9.8 mm |
| Width (inches): | 0.386 inch |
| Height: | 13.1 mm |
| Height (inches): | 0.516 inch |
| Depth: | 4.8 mm |
| Depth (inches): | 0.189 inch |
| Net weight: | 0.4 g |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...60 °C |
| Storage temperature: | -40 °C...85 °C |
| Rated voltage: | 300 V |
| Rated current: | 17.5 A |
| Insulation: | Yes |
| Touch-safe protection: | Yes |
| Colour: | black |
| Number of cross-connected terminals: | 2 |
| Number of poles: | 2 |
| Pitch in mm (P): | 6.4 mm |
| Type of mounting: | Plugged |
| Version: | cannot be cut to length |
| Rated current (UL): | 10 A |
| Version: | cannot be cut to length |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pitch in mm (P): | 6.4 mm |
| ETIM 6.0: | EC002586 |
| ETIM 7.0: | EC002586 |
| eClass 9.1: | 27-37-16-92 |
| eClass 10.0: | 27-37-16-92 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.002 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
